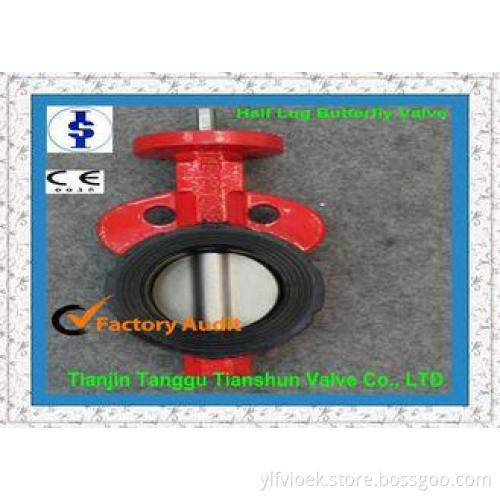

Lever Operated Half Lug Butterfly Valve Stainless Steel With EPDM / NBR Seat
Product Description
Size:DN50-DN300(2''-12'')
Pressure : PN10,PN16
Design standard:BS5153
Face to face :ISO5752 Series16,BS5155
Suitable temperature: -10°C~+120°C
Material List
| NO. | PARTS NAME | MATERIAL |
| 1 | BODY | CAST IRON/DUCTILE IRON |
| 2 | DISC | DUCTILE IRON/CF8/CF8M/WCB |
| 3 | PIN | SS410/SS416/SS304/SS316 |
| 4 | SEAT | EPDM/NBR/HYPALON/VITON/NEOPRENE |
| 5 | BUSHING | PTFE/LUBRICATING |
| 6 | O-RING | EPDM/NBR/VITON/HYPALON/NEOPRENE |
Product Feature:
1. Fission type corrosion resistant butterfly valve ,lined with PTFE sealing ring.
2. PTFE sealing ring with VITON ,ect.high elastic rubber back.
3. Adopt to various dangerous fluid medium.
4. Apply to different flange standards installation..
6. Double shaft structure, a guide settings on the drive shaft
Company Profile
We,Tianshun Valve was founded in 1993,with twenty-one years hard working we become one of the largest valve manufacturers in Tianjin,China.We're specialized in developing various kinds of Butterfly,Groove,Check,Gate and ball valves etc.Our factory can manufacture at least 250,000 pieces valves in a year .With our effort,we achieve ISO9001 and the CE certificate .We take quality and service above everything as our motto.
Product Show:
Packaging & Delivery
| Packaging Detail: | wooden cases or as the client's requirements. |
| Delivery Detail: | Two containers per month |
