Rubber Lined Tapped Lug Body Butterfly Valve Wafer For Industrial , EPDM Seat
TECHNICAL DATA
Valve Standard:MSSSP-67,API 609 ,BS ,EN593/BS5155
Nominal Diameter:2''-12''/DN50-DN300
Working Pressure:10Bar/16Bar
Face-to-face:API 609Table 1,ISO 5752 Series 20,EN 558 Series 20
Flange accommodation:ANSI B16.1 Class125/150AWWA C207MSS SP44 Class150
Top Flange:ISO5211
NOTE: Pinned design and Pinless Design are both available.
Pressure Temperature Ratings | |
working pressure: | 10bar/16bar |
testing pressure: | shell:24bar/37.5bar |
| seal:17.6bar/27.5bar |
working temperature: | -20 degree to 110 degree EPDM seat |
| -10 degree to 80degree NBR seat |
suitable media: | water,oil&gas |
Material List
NO. | PARTS NAME | MATERIAL |
1 | BODY | CAST IRON/DUCTILE IRON |
2 | DISC | DUCTILE IRON/CF8/CF8M/WCB |
3 | PIN | SS410/SS416/SS304/SS316 |
4 | SEAT | EPDM/NBR/HYPALON/VITON/NEOPRENE |
5 | BUSHING | PTFE/LUBRICATING |
6 | O-RING | EPDM/NBR/VITON/HYPALON/NEOPRENE |
Product Feature:
1. Fission type corrosion resistant butterfly valve ,lined with PTFE sealing ring.
2. PTFE sealing ring with VITON ,ect.high elastic rubber back.
3. Adopt to various dangerous fluid medium.
4. Apply to different flange standards installation.
6. Double shaft structure, a guide settings on the drive shaft.

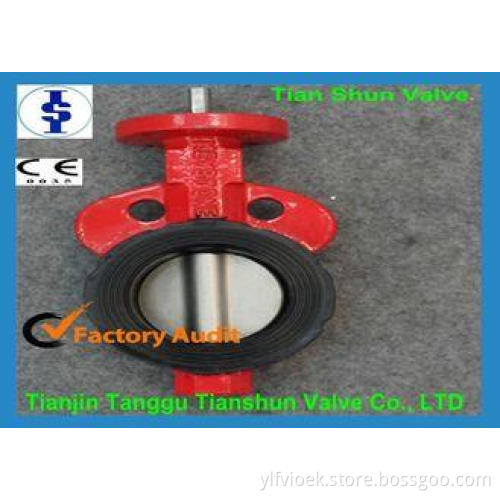

Product Show:
Different Types Valves:
About Us
We, Tianjin Tanggu Tianshun Valve Co., Ltd., have manufactured butterfly valves for 21 years. We have manufactured kinds of butterfly valves for your choose including Wafer, Lug, U type, D341(centerline double flanged butterfly valve), D343(double eccentric flanged butterfly valve), Grooved end type, Double disc wafer check valve, Flapper check valve, Eccentric plug valve, Half-lug or no-lug type, Dismantling joint etc. Our brand is TST. We regard the quality and reputation as our company’s life.
