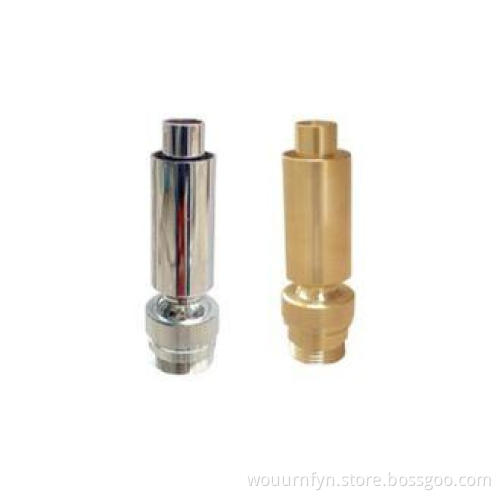

Brass / Stainless Steel Big Air Mixed Trumpet Water Fountain Nozzles Copper / SS304
Description:
Yicheng High Quality Big Air Mixed Trumpet Nozzles, with its Special new and perfect design and made by high quality brass or brass chromeplated, Which are popular and idea choice for domestic and oversea customers.
Using high-speed flow form the negative pressure of the nozzle outlet outside, breathing the air form the spectacular water column like white jade. Often used to mark characteristic waterscape, landscape effect is good.
With negative pressure produced by high-speed water flow inside nozzle, Big Air Mixed Trumpet nozzle can absorb the outer air into the nozzle and produce white and strong water column, which is anti-wind and suitable to all outdoor or indoor ponds. It can change the air capacity it absorbed by adjusting the outer shell. The more air it sucks, the more white the spray would be. Aerated spray nozzle also has an inside ball connector which allows 15 degrees adjustment vertically.
Specifications
Stainless Steel 304 Material:
| Model | Performance | Water Inlet | Water Outlet | Size | Weight | ||||||
| pressure (Kpa) | capacity (m3/h) | height (m) | coverage (m) | diameter (inch) | connection type | diameter (mm) | number (pcs) | height (mm) | max dia. (mm) | (kg) | |
| CCqB50 | 80-250 | 20-25 | 2-12 | 0.6-1.2 | 2" | external thr. | Ф29 * Ф18 * 1 | 230 | 73 | 1.0 | |
| CCqB40 | 80-200 | 15-18 | 2-7 | 0.6-1.0 | 1 1/2" | Ф29 * Ф18 * 1 | 205 | 59 | 0.7 | ||
| CCqB25 | 60-200 | 8-15 | 1.5-5.5 | 0.5-0.8 | 1" | Ф20 * Ф10 * 1 | 155 | 44 | 0.4 | ||
Brass and Brass Chromplated Material:
| Model | Performance | Water Inlet | Water Outlet | Size | Weight | ||||||
| pressure (Kpa) | capacity (m3/h) | height (m) | coverage (m) | diameter (inch) | connection type | diameter (mm) | number (pcs) | height (mm) | max dia. (mm) | (kg) | |
| CCqB50 | 80-250 | 20-25 | 2-12 | 0.6-1.2 | 2" | external thr. | Ф30 * 1 | 265 | 62 | 1.2 | |
| CCqB40 | 80-200 | 15-18 | 2-7 | 0.6-1.0 | 1 1/2" | Ф25 * 1 | 177 | 54 | 0.7 | ||
| CCqB25 | 60-200 | 8-15 | 1.5-5.5 | 0.5-0.8 | 1" | Ф20 * 1 | 165 | 42 | 0.4 | ||
| CCqB20 | 60-150 | 6-8 | 0.5-4 | 0.3-0.5 | 3/4" | Ф15 * 1 | 122 | 30 | 0.25 | ||
