Brass Concentration Water Fountain Nozzles
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|
Product Description
Product Description

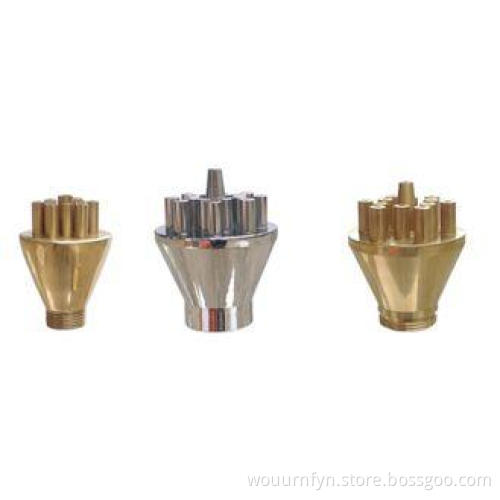

Brass / Stainless Steel Concertration Water Fountain Nozzles
Description:
Yicheng High Quality Concentration Nozzles, with its Special new and perfect design and made by high quality brass and brass with chrome-plate, Which are popular and idea choice for domestic and oversea customers.
Yicheng High Quality Concentration Nozzles may be used in the center of ponds, when it spray, it makes a thick & tall concentration water spray and looks quite imposing!
Specifications
Stainless Steel 304 Material:
| Model | Performance | Water Inlet | Water Outlet | Size | Weight | ||||||
| pressure (Kpa) | capacity (m3/h) | height (m) | coverage (m) | diameter (inch) | connection type | diameter (mm) | number (pcs) | height (mm) | max dia. (mm) | (kg) | |
| ZJT40 | 150-280 | 20-35 | 5-7 | 0.5-0.6 | 1 1/2" | external thr. | Ф8 * 1, Ф6 * 16 | 110 | 93 | 0.82 | |
| ZJT25 | 100-250 | 10-15 | 3-5 | 0.3-0.5 | 1" | internal thr. | Ф8 * 1, Ф6 * 16 | 110 | 93 | 0.82 | |
Brass Material:
| Model | Performance | Water Inlet | Water Outlet | Size | Weight | ||||||
| pressure (Kpa) | capacity (m3/h) | height (m) | coverage (m) | diameter (inch) | connection type | diameter (mm) | number (pcs) | height (mm) | max dia. (mm) | (kg) | |
| ZJT65 | 150-280 | 40-55 | 6-10 | 0.8-1.5 | 2 1/2" | internal thr. | Ф14 * 1, Ф10 * 16 | 140 | 143 | 2.42 | |
| ZJT50 | 150-280 | 30-45 | 5-9 | 0.6-0.8 | 2" | Ф10 * 1, Ф8 * 16 | 145 | 115 | 1.3 | ||
| ZJT40 | 150-280 | 20-35 | 5-7 | 0.5-0.6 | 1 1/2" | external thr. | Ф8 * 1, Ф6 * 12 | 115 | 93 | 0.82 | |
| ZJT25 | 100-250 | 10-15 | 3-5 | 0.3-0.5 | 1" | internal thr. | Ф8 * 1, Ф6 * 8 | 105 | 73 | 0.5 | |
