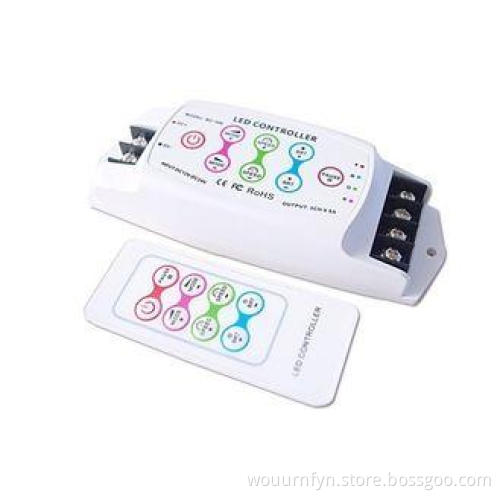

LED Remote Controller ( For All The LED Lights And Jumping Fountains) Water Fountain Equipment
Description:
LED controller is an universal RGB controller for entire color changing, which adopted high-performance single-chip and the most advanced PWM(Pulse-Width-Modulation) controlling technology. It can control all 4-pin 3-loop LED RGB full color lights such as LED module, LED strip, LED SMD tape, and high power LED projector, wall-washer, flood light, underwater lamp etc. Adopt flame retardant PC ABS casting, touch function button and exquisite appearance.
Features:
1). Automatically adapt to LED light which works from DC5V-24V or DC12V-24V.
2). 256 levels of grey scale per RGB, even & smooth for color gradual changes, without any flashes.
3). 16/32 fantastic modes such as color smooth , color skipping, horserace, strobe, etc.
4). Can stop at static single color, speed & brightness adjustable at pause status.
5). Working with power repeater to expand power output unlimitedly.
Measurements:
| Model | No RF remote | With RF remote |
| Input Voltage | DC5V - DC24V | DC12V - DC24V |
| Max Current Load | 8A / CH x 3 | 8A / CH x 3 |
| Max Output Power | 120W(5V) 290W(12V) 580W(24V) | 290W(12V) 580W(24V) |
| Scale Levels | 256 LEVEL / CH x 3 | 256 LEVEL / CH x 3 |
| Working Temperature | -30℃ - 55℃ | -30℃ - 55℃ |
| Product Dimension | L165 x W56 x H36 mm | |
| Package Dimension | L170 x W49 x H49 mm | |
| Weight(G.W.) | 160g | 190g |
| Remote Control Distance | No | 30m with block; 60m without block |
| Control Type | Common anode | Common anode |
Connect sample:
