3P Front Entry 600v 20A Spring Clamp Terminal Block Connect
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Zhejiang China (Mainland) |
|---|

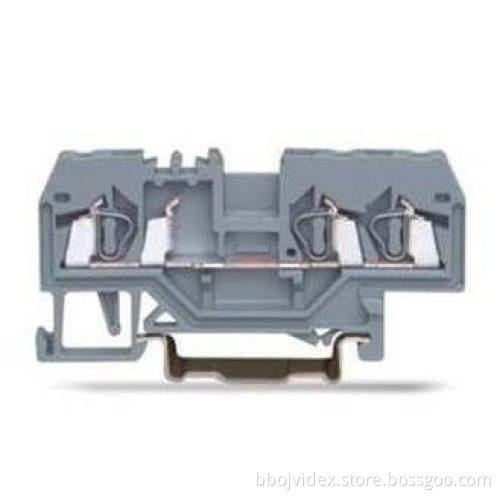

3P Front Entry 600v 20A Spring Clamp Terminal Block Connector PA66 Insulation.
Quick details
3-Conductor Through Terminal Block
Wire Range 0.2-2.5mm2/24-16AWG
800V 24A 600V 20A 25A.
Front-entry Type
Order No.:225951(Gray)
Other Color: 225952(Orange)/225953(Red)
225954(Blue)/225955(Yellow)
◆ Use SUPU spring clipping technology, have the advantages of reliability, shock resistance, and maintenance-free, etc.
◆ Operate easily, only need a screw driver.
◆ Print marker card as customer's requests.
◆ Mounted on SP35 standard rail (steel or aluminum)
Specifications:
|
Article: |
3-Conductor Through Terminal Block |
|||
|
Wire Range: |
0.2-2.5mm2/24-16AWG |
|||
|
|
IEC |
UL |
CSA |
EN |
|
Rated Voltage: |
800V |
600V |
600V |
800V |
|
Rated Current: |
24A |
20A |
25A |
24A |
|
Size (mm/in): |
5×64×28mm/0.197×2.52×1.10 in |
|||
|
Strip length (mm/in): |
8-9 mm/0.33 in |
|||
|
Wires: |
Applied for any kind of wires |
|||
|
Connect Ways: |
spring-clipping |
|||
|
Entry Type: |
Front-entry |
|||
|
Peak Voltage: |
8KV |
|||
|
Weight: |
|
|||
|
Pollution Severity: |
3 |
|||
|
UL94 Insulation Material: |
V 0 or V 2 |
|||
|
Insulation Material: |
PA66 |
|||
|
Color: |
Gray/Orange/Red/Blue/Yellow |
|||
|
Packing: |
100PCS |
|||
Attachment:
|
Name |
Order No. |
|
End-and Intermediate |
225151(Gray)/225152(Orange) |
|
Adjacent Jumper |
225301 |
|
Protective Warning Marker |
225701 |
