800V 32A 24 -12 AWG Electrical Spring Cage Terminal Block F
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Zhejiang China (Mainland) |
|---|

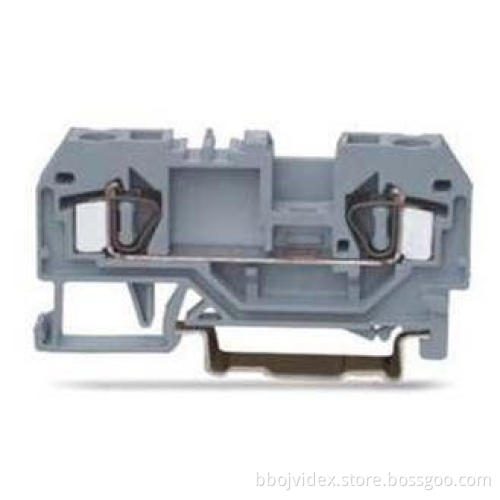

600V 25A 800V 32A Electrical Spring Cage Terminal Block For Any Kind Of Wires
Quick details
3-Conductor Through Terminal Block
Wire Range 0.2-4.0mm2/24-12AWG
800V 32A 600V 20A 25A
Applied for any kind of wires
Order No.:204921(Gray)
Other Color: 204922(Orange)/204923(Red)
204924(Blue)/204925(Yellow).
◆ Use SUPU spring clipping technology, have the advantages of reliability, shock resistance, and maintenance-free, etc.
◆ Operate easily, only need a screw driver.
◆ Print marker card as customer's requests.
◆ Mounted on SP35 standard rail (steel or aluminum).
Specifications:
|
Article: |
3-Conductor Through Terminal Block |
|||
|
Wire Range: |
0.2-4.0mm2/24-12AWG |
|||
|
|
IEC |
UL |
CSA |
EN |
|
Rated Voltage: |
800V |
600V |
600V |
800V |
|
Rated Current: |
32A |
20A |
25A |
32A |
|
Size (mm/in): |
6×73.5×29mm/0.236×2.89×1.14in |
|||
|
Strip length (mm/in): |
9-10mm/0.37 in |
|||
|
Wires: |
Applied for any kind of wires |
|||
|
Connect Ways: |
spring-clipping |
|||
|
Entry Type: |
Front-entry |
|||
|
Peak Voltage: |
8KV |
|||
|
Weight: |
|
|||
|
Pollution Severity: |
3 |
|||
|
UL94 Insulation Material: |
V 0 or V 2 |
|||
|
Insulation Material: |
PA66 |
|||
|
Color: |
Gray/Orange/Red/Blue/Yellow |
|||
|
Packing: |
100PCS |
|||
|
Name |
Order No. |
|
End-and Intermediate |
204151(Gray)/204152(Orange) |
|
Adjacent Jumper |
204301 |
|
Protective Warning Marker |
204701 |
