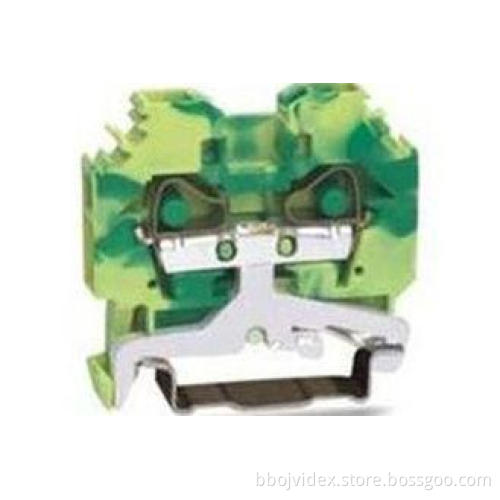

0.2 - 6.0mm2 / 24 - 12AWG 600V 30A 40A Spring Cage Terminal Block Incline-entry
Quick details
2-Conductor Ground Terminal Block
Wire Range 0.2-6.0mm2/24-12AWG
800V 41A 600V 30A 40A.
Order No.:206907(Green-yellow)
◆ Use SUPU spring clipping technology, have the advantages of reliability, shock resistance, and maintenance-free, etc.
◆ Operate easily, only need a screw driver.
◆ Print marker card as customer's requests.
◆ Mounted on SP35 standard rail (steel or aluminum)
Specifications:
|
Article: |
2-Conductor Ground Terminal Block |
|||
|
Wire Range: |
0.2-6.0mm2/24-12AWG |
|||
|
|
IEC |
UL |
CSA |
EN |
|
Rated Voltage: |
800V |
600V |
600V |
800V |
|
Rated Current: |
41A |
30A |
40A |
41A |
|
Size (mm/in): |
8×46.5×37 mm/0.315×1.83×1.46in |
|||
|
Strip length (mm/in): |
12-13 mm/0.49 in |
|||
|
Wires: |
Applied for any kind of wires |
|||
|
Connect Ways: |
spring-clipping |
|||
|
Entry Type: |
Incline-entry |
|||
|
Peak Voltage: |
8KV |
|||
|
Weight: |
|
|||
|
Pollution Severity: |
3 |
|||
|
UL94 Insulation Material: |
V 0 or V 2 |
|||
|
Insulation Material: |
PA66 |
|||
|
Color: |
Green-yellow |
|||
|
Packing: |
100PCS |
|||
Attachment:
|
Name |
Order No. |
|
End-and Intermediate |
206101(Gray)/206102(Orange) |
|
Adjacent Jumper |
206301 |
|
Protective Warning Marker |
206701 |
