3P 4P Conductor 24 -14 AWG Spring Cage Terminal Block Groun
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Zhejiang China (Mainland) |
|---|

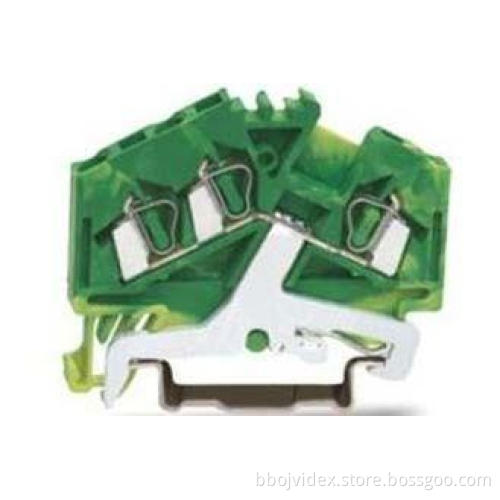

3P 4P Conductor 24 -14 AWG Spring Cage Terminal Block Ground Angled SP225
Quick details
3 or 4-Conductor Ground Terminal Block Angled Type.
Wire Range 0.2-2.5mm2/24-14AWG
800V 24A 600V 20A 25A
Green-Yellow color
Order No.:225964(Green-Yellow)
◆ Use SUPU spring clipping technology, have the advantages of reliability, shock resistance, and maintenance-free, etc.
◆ Operate easily, only need a screw driver.
◆ Print marker card as customer's requests.
◆ Mounted on SP35 standard rail (steel or aluminum).
Article: | 3 or 4-Conductor Ground Terminal Block Angled Type | |||
Wire Range: | 0.2-2.5mm2/24-14AWG | |||
| IEC | UL | CSA | EN |
Rated Voltage: | 800V | 600V | 600V | 800V |
Rated Current: | 24A | 20A | 25A | 24A |
Size (mm/in): | 5×50.5×36.5mm/0.197×1.99×1.44 in | |||
Strip length (mm/in): | 8-9 mm/0.33in | |||
Wires: | Applied for any kind of wires | |||
Connect Ways: | Spring-clipping | |||
Wiring Type: | Angled-type | |||
Peak Voltage: | 8KV | |||
Weight: | 11.2g | |||
Pollution Severity: | 3 | |||
UL94 Insulation Material: | V 0 or V 2 | |||
Insulation Material: | PA66 | |||
Color: | Green-Yellow | |||
Packing: | 100PCS | |||
