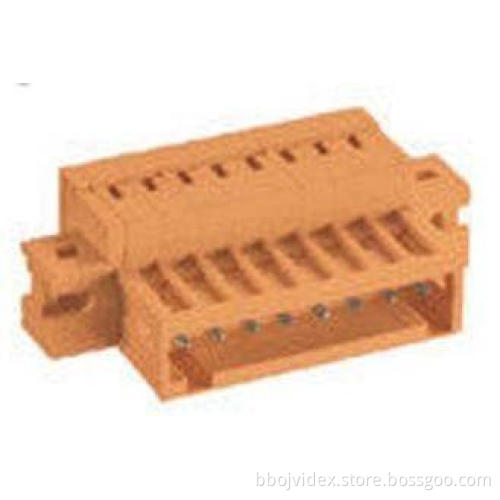

Wago Male 250V 300V 10A MCS Connector With Fixing Flanges , PA66
Quick details
Orange
2-24 Male connectors with spring-cage clamp.
Pitch 3.81mm/0.15in
250V 300V 10A
Wire Range 0.2-1.5mm2/24-14AWG.
2-24 Male connectors with spring-cage clamp with fixing flanges 100% protected against mismating
Order No.:438406/010(Orange).
◆ As PCB Connectors,
◆As feed-through plug connector,
◆ As plug connectors on rail-mounted terminal blocks,
◆ As plug-in connection for flying leads for different types of assembly,
◆ Applied in PCBs, heat pump controller,the door control of a lightrail.
Article: | 2-24 Male connectors with spring-cage clamp with fixing flanges 100% protected against mismating | |||
Pitch: | 3.81mm/0.15in | |||
| IEC | UL | CSA |
|
Rated Voltage: | 250V | 300V | 300V |
|
Rated Current: | 10A | 10A | 10A |
|
Wire Range | 0.2-1.5mm2/24-14AWG | |||
Available Poles: | 2-24 |
|
|
|
Strip length (mm/in): | 8-9mm/0.33 in | |||
Wires: | Applied for any kind of wires | |||
Connect Ways: | spring-clipping | |||
Peak Voltage: | 2.5KV | |||
Weight: | g | |||
Pollution Severity: | 2 | |||
UL94 Insulation Material: | V 0 or V 2 | |||
Insulation Material: | PA66 | |||
Color: | Light-Gray | |||
Packing: | 100PCS | |||
