24 - 14AWG Right Angle Pin MCS Connector , 2 - 24 Poles
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Zhejiang China (Mainland) |
|---|

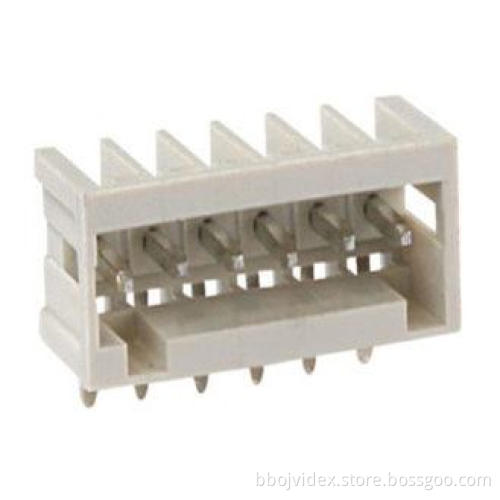

24 - 14AWG Right Angle Pin MCS Connector , 2 - 24 Poles
Quick details
2-24 Right Angle Pin
Pitch 3.5mm/0.138in
250V 300V 10A
Wire Range 0.2-1.5mm2/24-14AWG.
Applied for any kind of wires.
Order No.:435306 (Light-Grey).
◆ As PCB Connectors,
◆As feed-through plug connector,
◆ As plug connectors on rail-mounted terminal blocks,
◆ As plug-in connection for flying leads for different types of assembly,
◆ Applied in PCBs, heat pump controller,the door control of a lightrail.
Article: | 2-24 Right Angle Pin | |||
Pitch: | 3.5mm/0.138in | |||
| IEC | UL | CSA |
|
Rated Voltage: | 250V | 300V | 300V |
|
Rated Current: | 10A | 10A | 10A |
|
Wire Range | 0.2-1.5mm2/24-14AWG | |||
Available Poles: | 2-24 |
|
|
|
Strip length (mm/in): | 8-9mm/0.33 in | |||
Wires: | Applied for any kind of wires | |||
Connect Ways: | spring-clipping | |||
Peak Voltage: | 2.5KV | |||
Weight: | g. | |||
Pollution Severity: | 3 | |||
UL94 Insulation Material: | V 0 or V 2 | |||
Insulation Material: | PA66 | |||
Color: | Light-Gray | |||
Packing: | 100PCS | |||
