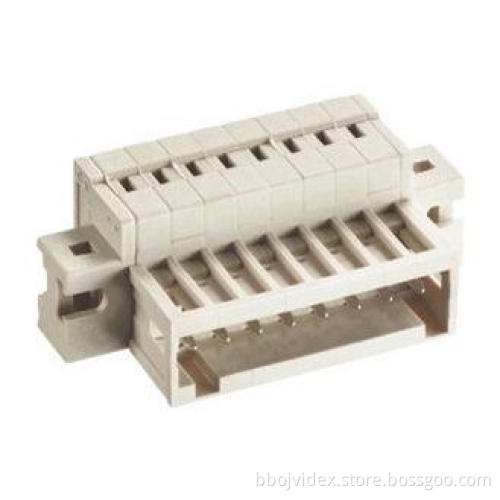

2 - 24 Pole 24 - 16AWG MCS Connector , 3.81mm Pitch SP435 SP438
Quick details
2-24 Poles Femae Connectors.
Pitch 3.81mm/0.15in
Wire Range 0.2-1.5mm2/24-16AWG.
250V 300V 10A
PA66 Insulation Material.
Order No.:438106(orange)
Specifications:
|
Article: |
2-24 Poles Femae Connectors |
|||
|
Pitch: |
3.81mm/0.15in |
|||
|
Available Poles: |
2-24 |
|||
|
Wire Range(MM2/AWG): |
0.2-1.5mm2/24-16AWG |
|||
|
|
IEC |
UL |
CSA |
|
|
Rated Voltage: |
250V |
300V |
300V |
|
|
Rated Current: |
10A |
10A |
10A |
|
|
Strip length (mm/in): |
8-9mm/0.33in |
|||
|
Wires: |
Applied for any kind of wires |
|||
|
Connect Ways: |
spring-clipping |
|||
|
dianweishu: |
1 |
|||
|
Peak Voltage: |
4.0KV |
|||
|
Weight: |
G |
|||
|
Pollution Severity: |
3 |
|||
|
UL94 Insulation Material: |
V 0 or V 2 |
|||
|
Insulation Material: |
PA66 |
|||
|
Color: |
orange |
|||
|
Packing: |
100 |
|||
