250V 16A 0.2 - 2.5 mm2 Female MCS Connector For Any Kind O
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Zhejiang China (Mainland) |
|---|
Product Description
Product Description

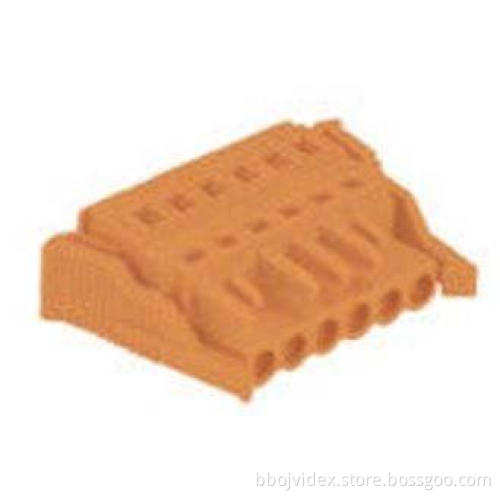

250V 16A 0.2 - 2.5 mm2 Female MCS Connector For Any Kind Of Wires
Quick details
2- 24 Female connectors with spring-cage clamp.
Wire Range(MM2/AWG)0.2-2.5mm2
250V 16A 300V 15A
Applied for any kind of wires.
Order No.:458106/050(orange)
Order No.:458106/050(orange)
Specifications:
|
Part Name: |
2- 24 Female connectors with spring-cage clamp(with locking device). |
|||
|
Wire Range(MM2/AWG): |
0.2-2.5mm2 |
|||
|
IEC |
UL |
CSA |
||
|
Rated Voltage(V): |
250V |
300V |
300V |
|
|
Rated Current (A): |
16A |
15A |
15A |
|
|
Size(mm): |
||||
|
Strip length (mm/in): |
8-9mm |
|||
|
Wires: |
Applied for any kind of wires |
|||
|
Connect Ways:: |
spring-clipping |
|||
|
Entry Type: |
||||
|
Wire numbers: |
||||
|
potential no: |
24 |
|||
|
Peak Voltage: |
4.0KV |
|||
|
Weight(g): |
||||
|
pollution severity: |
3 |
|||
|
UL94 Insulation Material: |
V 0 or V 2 |
|||
|
Insulation Material: |
PA |
|||
|
Color: |
orange |
|||
|
Pin size: |
||||
