P5 / P6 Deep Groove Ball Bearings , Single Row Ball Bearing
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Wuxi,China |
|---|

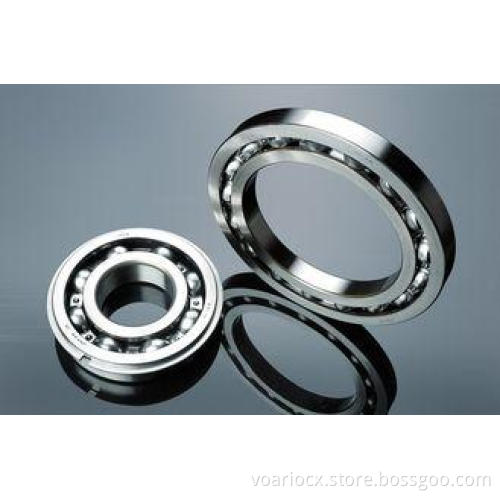

Deep groove ball bearing 6300 series,Single Row Ball Bearing
1. High precision: P0,P6,P5
2. Low noise
3. Small vibration
4. High reliability
5. Long serive life
6. Large stock available
7. Processing with supplied drawings
| Type | Ball Bearing |
| Model Number |
6300 series Deep Groove Ball Bearings |
| Brand Name | YW |
| Bearing Material | Carbon steel,Bearing steel |
| Cage Material | steel sheet or brass cages |
| Precision Rating | P0, P6, P5 ,P4 ,P2 |
| Clearance Grades | C0,C2,C3,C4,C5 |
| Vibration Grades | Z1V1,Z2V2 and Z3V3 |
| Number of Row | Single Row |
| Seals Type |
OPEN/2Z/2RS/Z/RS |
6300 series Deep groove ball bearing
|
Bearing Designation |
Boundary dimensions (mm) |
WEIGHT(KG) |
||
|
d |
D |
B |
||
|
6300 |
10 |
35 |
11 |
0.053 |
|
6301 |
12 |
37 |
12 |
0.061 |
|
6302 |
15 |
42 |
13 |
0.080 |
|
6303 |
17 |
47 |
14 |
0.109 |
|
6304 |
20 |
52 |
15 |
0.142 |
|
6305 |
25 |
62 |
17 |
0.219 |
|
6306 |
30 |
72 |
19 |
0.349 |
|
6307 |
35 |
80 |
21 |
0.455 |
|
6308 |
40 |
90 |
23 |
0.639 |
|
6309 |
45 |
100 |
25 |
0.873 |
|
6310 |
50 |
110 |
27 |
1.07 |
|
6311 |
55 |
120 |
29 |
1.37 |
|
6312 |
60 |
130 |
31 |
1.70 |
|
6313 |
65 |
140 |
33 |
2.08 |
|
6314 |
70 |
150 |
35 |
2.52 |
|
6315 |
75 |
160 |
37 |
3.02 |
|
6316 |
80 |
170 |
39 |
3.59 |
|
6317 |
85 |
180 |
41 |
4.23 |
|
6318 |
90 |
190 |
43 |
4.91 |
|
6319 |
95 |
200 |
45 |
5.67 |
|
6320 |
100 |
215 |
47 |
7.00 |
|
6321 |
105 |
225 |
49 |
8.05 |
|
6322 |
110 |
240 |
50 |
9.54 |
|
6324 |
120 |
260 |
55 |
12.8 |
|
6326 |
130 |
280 |
58 |
18.3 |
|
6328 |
140 |
300 |
62 |
22.3 |
|
6330 |
150 |
320 |
65 |
26.7 |
The deep groove ball bearing:
1)The single row deep groove ball bearing are simple in design,non-separable,suitable for high and ever very high speeds and are robust in operation,requiring little maintenance
2)Deep raceway grooves and the close conformity between the raceway grooves and the balls enable deep groove ball bearings to accommodate axial loads in both directions,in addition to radial loads,ever at high speeds.
3)This kind of bearing are also available both in open design and sealed design.
YW precision deep groove ball bearings are good quality products with excellent performance. Because of their high precision, high rotating speed, high reliability, low friction and low noise, they are widely used in areas of machine tools, measuring instruments, office machinery, household appliances, various types of electric motors, industrial automation control, etc.
YW precision deep groove ball bearings include a variety of shields and seals to meet the many different requirements customers demand. For detailed specification, please feel free to contact us.
- High Quality
- Reasonable Price
- Good after Service
- More Than 15 Years Experience
Product Design:
Independent team dedicated to develop and design products is always ready to meet customer’s new demand;
Advanced design and analysis means provide optimal bearing design and integrated solution for application.
Manufacturing &Process Control:
Advanced Metrology:
Hommel profile gauge,Zeiss length gauge,Hommel roughness gauge,Starrett projector,Roundcom roundness gauge,Surform roughness gauge,ABLT-2 bearing life tester
