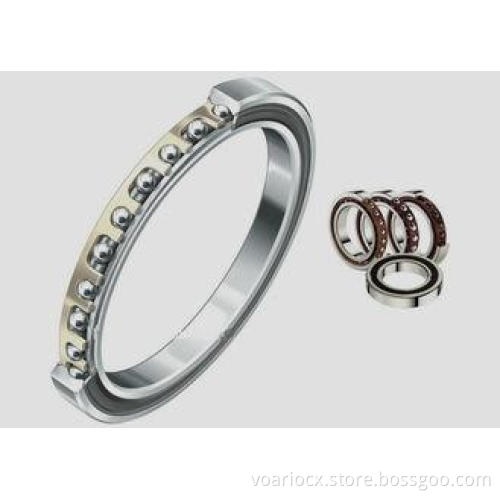

Single Row Angular Contact Ball Bearing 7301 SIZE:12mm×37mm×12mm
Angular contact ball bearings are able to support radial load axial load .As single row angular contact ball bearings can only support axial load in single direction ,matched bearing mounting is often adopted to them as matched parts of bearings ,preload for them is more convenient .
| Type | Ball |
| Model Number | 7301 |
| Brand Name | YW or OEM |
| Cage Material | brass,steel,nylon |
| Precision Rating | P0, P6, P5 ,P4 ,P2 |
| Clearance Grades | C0,C2,C3,C4,C5 |
| Vibration Grades | Z1V1,Z2V2 and Z3V3 |
| Number of Row | Single Row |
| Seals Type |
OPEN |
Single Row Angular Contact Ball Bearing 7301
| Bearing Designation | Boundary Dimensions(mm) | BasiC load Rating( kN ) | Mass(kg) | |||||||
| With Cutting Cage | With pressing Cage | |||||||||
| d | D | B | r (min.) | r1 (min.) | Cr | Cor | Cr | Cor | Approx | |
| 7301 | 12 | 37 | 12 | 1.0 | 1.6 | 10.20 | 4.60 | 11.20 | 5.25 | 0.065 |
Angular contact ball bearings can bear not only axail but also radial loading capacity.Though only bearing unilateral axial loading capacity, they can be used together with the bearings bears opposite axial loading capacity. Angular contact ball bearings, with a limit ability to self-aligning, can not be dismantled.
YW Precision angular contact ball bearings are designed for combination radial and axial loading.
Products and services:
1. High precision: P0,P6,P5,P4,P2
2. Low noise
3. Small vibration
4. High reliability
5. Long serive life
6. Prompt delivery
7. Processing with supplied drawings
- High Quality
- ISO9001:2000
- TS16949:2009
- Reasonable Price
- Good after Service
- More Than 15 Years Experience
Manufacturing &Process Control:
Advanced Metrology:
Hommel profile gauge,Zeiss length gauge,Hommel roughness gauge,Starrett projector,Roundcom roundness gauge,Surform roughness gauge,ABLT-2 bearing life tester
