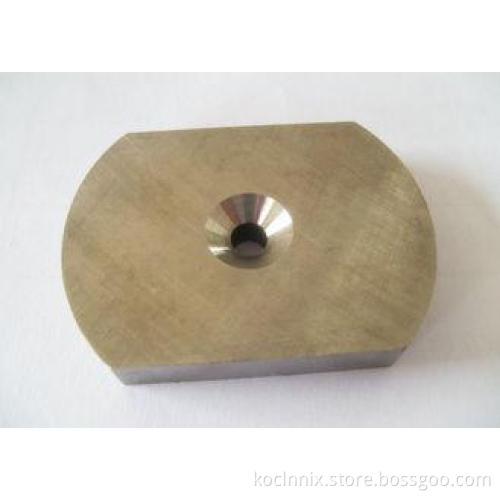

Radial Magnetized Magnet , Cast Alnico 5 and Alnico 8 Base
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Hangzhou Xiaoshan |
|---|
Radial Magnetized Magnet , Cast Alnico 5 and Cast Alnico 8 Base Magnets for Generators.
Quick Detail:
1. Comparatively high magnetic properties
2. Radial-orientated Magnetization
3. Cast surface or shiny surface
Applications:
Generator
Specifications:
|
Physical Properties of Cast Alnico |
|
|
Curie Temperature (℃) |
760-890 |
|
Max. Operating Temperature (℃) |
450-550 |
|
Resistivity (μohm.cm) |
47-54 |
|
Hardness (Hv) |
520-630 |
|
Density (g/cm³) |
6.90-7.30 |
|
Relative Recoil Permeability (μrec) |
1.70-4.70 |
|
Saturation Field Strength (kOe,kA/m) |
2.7-6.3/215-500 |
|
Temperature Coefficient of Br (%/℃) |
-0.025 ~ -0.02 |
|
Temperature Coefficient of iHc (%/℃) |
+0.01 ~ +0.03 |
Competitive Advantage:
1. High Temperature resistance
2. Comparatively high magnetic properties
3. Dimensional Stability
Customized service as well as OEM, just let us know your request or show us your drawings, we will provide high quality and best service.
