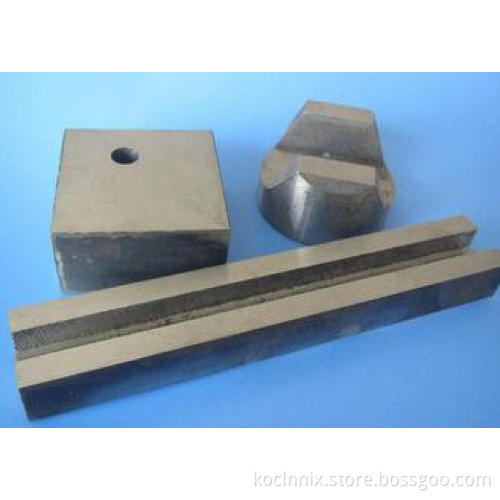

High Magnetic Cast Alnico Channel Magnet ,Alnico 5 Magnet
Quick Detail:
1. Comparatively high magnetic properties
2. Advanced techniques in producing Alnico 5 Channel Magnet
3. Tight tolerance of thickness as +/-0.01mm
Applications:
Magnetic Instruments
Specifications:
|
Physical Properties of Cast Alnico |
|
|
Curie Temperature (℃) |
760-890 |
|
Max. Operating Temperature (℃) |
450-550 |
|
Resistivity (μohm.cm) |
47-54 |
|
Hardness (Hv) |
520-630 |
|
Density (g/cm³) |
6.90-7.30 |
|
Relative Recoil Permeability (μrec) |
1.70-4.70 |
|
Saturation Field Strength (kOe,kA/m) |
2.7-6.3/215-500 |
|
Temperature Coefficient of Br (%/℃) |
-0.025 ~ -0.02 |
|
Temperature Coefficient of iHc (%/℃) |
+0.01 ~ +0.03 |
Competitive Advantage:
1. High Temperature resistance
2. Comparatively high magnetic properties
3. Dimensional Stability
Customized service as well as OEM, just let us know your request or show us your drawings, we will provide high quality and best service.
