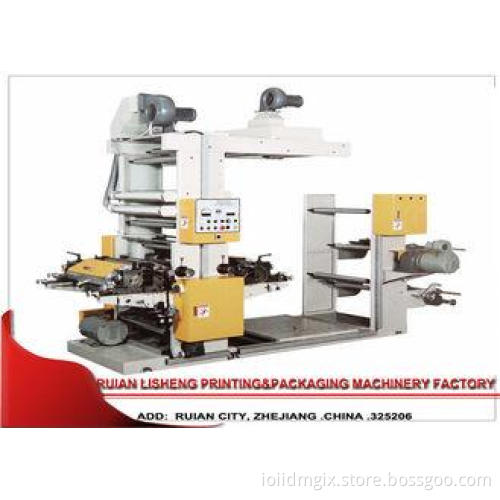

Doctor Blade Paper Flexo Printing Machine With Two Colors ,
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | CHINA |
|---|
Doctor Blade Paper Flexo Printing Machine With Two Colors , Rewinder / Unwinder DIA
use
Company is mainly engaged in design and manufacturing of printing machines. It is capable of
independently developing new flexographic printing machines.
The main features:
1. Take it easy, accurate color, long life.
2. Use motors, variable frequency speed control, saving electricity, small running fluctuations.
3. Off printing roll automatic stop the ink-running motor, and up-printing roll automatic start running the ink.
4. Use special diagonal-tooth gear, accurate printing size.
5. Two sets of heating devices, including central heating and constant temperature control system for
group control.
6. Low-roller special steel processing, and special process, and plating thickness of 0.1mm protective
layer of hard chromium.
7. Alloy roll with hard oxidation, treating by dynamic balance, static balanced.
8. With cold wind bellows, and can effectively prevent produce with ink adhesion after printing
9. Print produce are clear and good arrangement quality.
10. Bearing: NSK, Japan Brand, Germany ASNU aluminum alloy roll
Specification:
| Model | YTB-22000mm |
| Max. material width | 2000mm |
| Printing width | 1960mm |
| Printing material | Paper: 50 ~ 35 0g/m2 |
| Printing color | 2color |
| Printing length | 7.5"~ 5 0"(190mm~1 5 00mm) |
| M e ch a nical speed | 9 0m/min |
| Printing speed | 1 0m- 80m/min |
| Register precision | Longitude:±0.25mm Transverse:±0.25mm |
| Rewinder/Unwinder DIA | Φ 12 00mm (unwinding) |
| Φ 13 00mm (rewinding) | |
| Printing plate lifting system | Auto Hydraulic cylinder control printing roll up and down |
| EPC system: | Edge Position Controller, 1 PC |
| Tension system | Automatic tension control for unwinding 1 PCS |
| Unwinding loading and rewinding unloading way | By air shaft , with 10 kg magnetic 2 pcs |
| With 1.5 kw motor compages rewinding | |
| Printing Pressure | M echanical adjust |
| Anilxo roll |
Standard metal anilxo roll (1 0 0-300PLI). High: ceramic anilox roller ( 3 00-800lpi), single doctor blade |
| Master motor | 3.7Kw TAIWAN BRAND |
| Drying way | Electrical heat drying |
| Drying power | 24 kw |
| Blower of nature wind | 0.95 Kw x 2pcs |
| 25W x 12 pcs | |
| Inking motor | Taiwan brand |
| Master frequency converter | 3.7 kw |
| Master power | 40 Kw |
| Dimension(L×W×H) | 3.8 ×3.5× 3.2 m |
Sample :
