Plastic Film Flexographic Printing Machine With Double Unwi
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | CHINA |
|---|

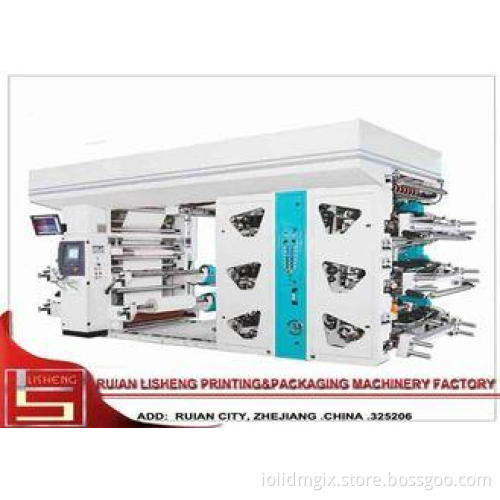

Plastic Film Flexographic Printing Machine With Double Unwind And Double Rewind
Specifications
6 Colour Flexographic Printing Machine
1) Print:BOPP,PE,PP,OPP,PAPER..
2) Speed: 150/min
3) Ceramic roller, chamber dr.blade
1. The main features:
1. Take it easy, accurate color, long life.
2. Use motors, variable frequency speed control, saving electricity, small running fluctuations.
3. Off printing roll automatic stop the ink-running motor, and up-printing roll automatic start running the ink.
4. Use special synchronous belt drive, accurate printing size.
5. Two sets of heating devices, including central heating and constant temperature control system for
group control.
6. Low-roller special steel processing, and special process, and plating thickness of 0.1mm protective
layer of hard chromium.
7. Alloy roll with hard oxidation, treating by dynamic balance, static balanced.
8. With cold wind bellows, and can effectively prevent produce with ink adhesion after printing
9. Print produce are clear and good arrangement quality.
10. Bearing: NSK, Japan Brand, Germany ASNU aluminum alloy roll
2. Main parameter:
|
MODEL: |
YTB-6600.6800.61000 |
|
Printing Material: |
Plastic film OPP:20~80μm,BOPP:18~80μm,PE:35~100μm, NY:20~50μm,PET:12~60μm,CPP:20~60μm, paper: 20~150g/m2 |
|
Machine color: |
6 COLOR |
|
Max. Material width: |
650mm up to 1650mm, width size depends on client need |
|
Max. Printing width |
550mm up to 1550mm, width size depends on client need |
|
Max.printing length: |
191-1100mm |
|
Max. Machine speed: |
80m/min |
|
Max. Printing speed: |
60m/min |
|
Register precision: |
0.15mm |
|
Plate thickness: |
2.28 mm |
|
Printing cylinder on machine: |
400mm |
machine printing effect :
