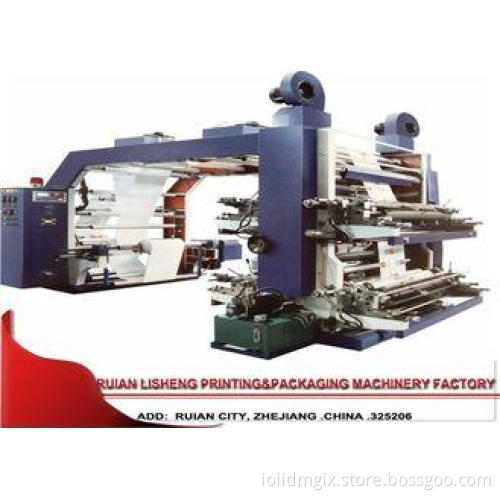

Multi Color digital printing machine for Roll Paper / Plastic Film / Non Woven / Fabric
Applications
1. High speed 6 Color CI satellite type flexo printing machine high quality printing
2. 8 color high speed stack type flexo printing machine
3. Stack type 8 color high speed flexo printing machine
4. Stack type 8 color high speed flexographic printing machine
5. New Belt drive high speed 8 color flexographic printing machine
6. color printing napkin machine
7. flexographic printing machine with PLC touch screen
8. 6 colour flexographic printing machine for pp wove fabric(sack)
9. 6 Color High Speed Flexographic Tape Printing Machine (Synchronous belt drive)
10. Synchronous belt drive system 6Color Plastic film High Speed Flexo Printing Machine
11. 6 Colour polyethylene printing machine
12. 4 color Napkin Paper Printing Machine For Hotel
Specifications:
|
Printing width Item |
600mm |
800mm |
1000mm |
1200mm |
1400mm |
1600mm |
1800mm |
2000mm |
||
|
Printing material |
Single adhesive paper,Double adhesive paper,Copper plate paper,Kraft paper :50-180g/m²; Single filter membrance paper,Double filter membrance paper : 80-300g/m² |
|||||||||
|
Printing color |
4 special color |
|||||||||
|
Material feeding width |
700mm |
900mm |
1100mm |
1300mm |
1500mm |
1700mm |
1900mm |
2100mm |
||
|
Printing length |
7.5"-40" (90mm-1016mm) ; 7.5"-50" (90mm-1270mm) ; 7.5"-60" (90mm-1524mm) |
|||||||||
|
Printing plate lifting system |
Pneumatic/Hydraulic press control |
|||||||||
|
Mechanical speed |
180m/min |
|||||||||
|
Printing speed |
10-15m/min |
|||||||||
|
Anilox cylinder |
80DK-170DK(Germany)/180LPI-800LPI |
|||||||||
|
Register precision |
Longitude:±0.1mm Transverse: ±0.1mm |
|||||||||
|
Rewinder/Unwinder DIA |
ø 1000mm /ø 1200mm /ø 1500mm |
|||||||||
|
Master motor |
5.5W |
7.5KW |
11W |
15KW |
||||||
|
Rewinder motor |
5.5KW |
7.5KW |
||||||||
|
Unwinder motor |
5.5KW |
7.5KW |
||||||||
|
Electrical header |
26KW |
32KW |
38KW |
45KW |
||||||
|
Blower of header |
0.75KW |
1.1 KW W |
1.5 K W |
2.2 K W |
||||||
|
Blower of nature wind |
0.75 KW |
1.1 KW |
1.5 KW |
2.2 KW |
||||||
|
Inking motor |
370W |
750W |
||||||||
|
Master frequency converter |
5.5KW |
7.5KW |
11KW |
15 KW |
||||||
|
Master power |
45KW |
54KW |
68KW |
82KW |
||||||
|
Weight |
8100Kg |
g8760Kg |
9300 Kg |
9750 Kg |
10120Kg |
10500Kg |
11000Kg |
11700Kg |
||
Applications
Automatic 4 Colour Flexo Printing Machine For Kraft Paper
Flexo Printing Machine For Non Woven Bag
Flexo Printing Machine For BOPP Film
Flexo Printing Machine For Corrugated Carton
Competitive Advantage
1. Low speed and full load startup; stable running by tension control when increasing and decreasing speed, noise is decreased
2. Aluminum roller adopts the Japan semi-sealing small bearing; flinty oxidation, static and dynamic balancing treatments are conducted; low resistance and small flop.
3. The special made modulus angular gears adopted; accurate printing size and full printing specifications
(6.35mm is a spec)
4. With single doctor blade and circulating pump
5. The grouped and controlled bottom roller processed with Germany particular steel materials processed with special techniques and electrically gilded with 0.1mm hard chromium protective layers
6. With hard chroming anilox roll
7. The machine use hydraulic printing-roll loading system which can automatically load printing rolls and run inks after the machine alarm working signal.
8. Good quality printing
9. Brilliance color appearance.
10. The operation is easier and more convenient,the register is more accurate,and the lifespan is also longer
printing effect :
