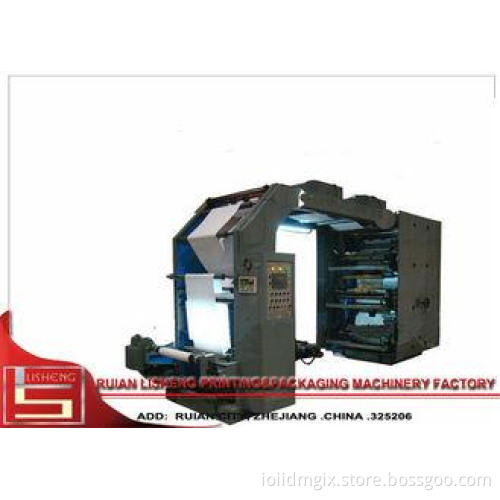

OPP PE Plastic Film Flexo Printing Machine With Ceramic Anilo Roller
Specifications:
|
Model |
YTB 1000mm |
|
Max. print material width |
10 50mm |
|
Printing width |
9 60mm |
|
Printing material |
Paper: 50 ~ 35 0g/m2 |
|
Printing color |
6 color (6+0) |
|
Printing length |
7.5"~ 5 0"(190mm~1 5 00mm) |
|
M e ch a nical speed |
9 0m/min |
|
Printing speed |
1 0m- 7 0m/min ( if you need high speed machine, pls contact Linda 0086-18857728175) |
|
Register precision |
Longitude:±0.25mm Transverse:±0.25mm |
|
Rewinder/Unwinder DIA |
Φ 12 00mm (unwinding) |
|
Printing plate lifting system |
Auto Hydraulic cylinder control printing roll up and down |
|
EPC system: |
Edge Position Controller, 1 PC |
|
Tension system |
Automatic tension control for unwinding 1 PCS |
|
Unwinding loading and rewinding unloading way |
By air shaft , with 10 kg magnetic 2 pcs |
|
Printing Pressure |
M echanical adjust |
|
Anilxo roll |
Standard metal anilxo roll (1 0 0-300PLI) blade |
|
Master motor |
3.7Kw TAIWAN BRAND |
|
Drying way |
Electrical heat drying |
|
Drying power |
24 kw |
|
Blower of nature wind |
0.95 Kw x 6 pcs |
|
Inking motor |
Taiwan brand |
|
Master frequency converter |
3.7 kw |
|
Master power |
32 Kw |
|
Dimension(L×W×H) |
5.4 ×2. 4× 3.2 m |
Application:
PE Film Printing Machine for Plastic Packag
6 Color Paper Cup /Roll Paper Flexographic Printing Machine
Plastic Bag 8 Color Flexo Printing Machine
4 Color Flexo Printing Machine with Double Winder
4 Color Flexo Printing Machine with Double Winde
4 Color Flexo Printing Machine for 2 Roll Printing
High Speed Four Color Plastic Flexo Printing Press
Competitive Advantage
1. Low speed and full load startup; stable running by tension control when increasing and decreasing speed;noise is decreased
2. Aluminum roller adopts the Japan semi-sealing small bearing; flinty oxidation, static and dynamic balancing treatments are conducted; low resistance and small flop.
3. The special made modulus angular gears adopted; accurate printing size and full printing specifications
( 6.35mm is a spec)
4. With single doctor blade and circulating pump
5. The grouped and controlled bottom roller processed with Germany particular steel materials processed with special techniques and electrically gilded with 0.1mm hard chromium protective layers
6. With hard chroming anilox roll
7. The machine use hydraulic printing-roll loading system which can automatically load printing rolls and run inks after the machine alarm working signal.
8. Good quality printing
9. Brilliance color appearance.
10. The operation is easier and more convenient,the register is more accurate,and the lifespan is also longer
Printing Effect :
