9002200mm Max. Cardboard 14.5KW 380V 3phase 50HZ Automatic

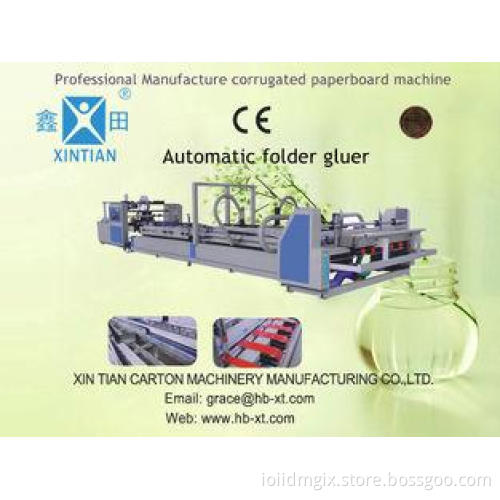

900╳2200mm Max. Cardboard 14.5KW 380V 3phase 50HZ Automatic Folder Gluer Carton Machinery

Description&Feature:

QF-AFG series automatic folder gluer machine consists of three sections: vacuum feeding section, gluing and folding section, counter and stacker section.

All motors except frequency conversion motor adopt Taiwan shengbond motor, Frequency conversion motor with quality inverter adjust speed. PLC and Touch screen control system for easy operation and running stable. The maximum speed is 130meters/min, average speed is 100meters/min. Energy conservation and high speed, saving labor cost.

Main structure of machine:

Feeding Section

1.Vacuum suction feeding to feed warping paperboard easily

2.Quality electromagnetic clutch and brake adpoted, feeding section controlled independently, operation easily

3.Stainless steel glue wheel adopted, long life and saving glue cost

4.Second creasing struction can impress again the paperboard which was not creased well

Gluing and Folding Section

1.Simpless structure and high reliability, glue quantity adjustable, cleaning easily

2.Creaser wheel adjustable, suit for 2-8mm thick paperboard

3.Imported quality rubber belt adopted, automatic folding

4.With paperboard rectify device and creasing rectify device

Counter and Stacker Section

1.Stacking and counting are simple and reliable

2.Digital control, operation easily and reliable. No-stop put in data and automatic counting

3.With rectification function

4.Paperboard counting and put out by pneumatic, stable and quickly

Main Technical Specifications
