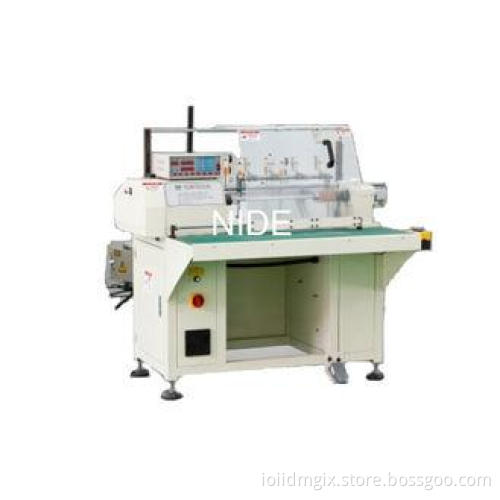

Double Station Automatic Coil Winding Machine For Generator Motor , Deep Pump Motor
Quick Detail:
Description:
Double Station Coil Winding Machine is newly developed for high-power motor of general-purpose use; two stations can work individually, while one is at operation, the other can be unloaded; characterized by less intermittent time, higher utilization ratio and output; various kinds of operate mode such as multilayer tapped winding, slot-hopping winding, multi-wire winding, automatic insulated sleeve assembly, etc. are available; Double Station Coil Winding Machine can be applied to coil winding for three phase motor, generator motor and deep pump motor.
Applications:
Double Station Coil Winding Machine can be applied to coil winding for three phase motor, generator motor and deep pump motor.
Technical data:
|
1. Winding tooling diameter |
50-350mm |
|
2. Wire diameter |
0.2-1.2mm |
|
3. Gear jumping distance |
250mm |
|
4. Square shaft dimension |
20*20*280mm |
|
5. Motor power |
0.75KW 6P |
|
6. Power |
220V 50-60HZ |
|
7. Weight |
450KG |
|
8. Dimension |
1600*1400*1500mm |
Competitive advantages:
This machine has two working station, each station can work individually. Variety of application, easy operation.
