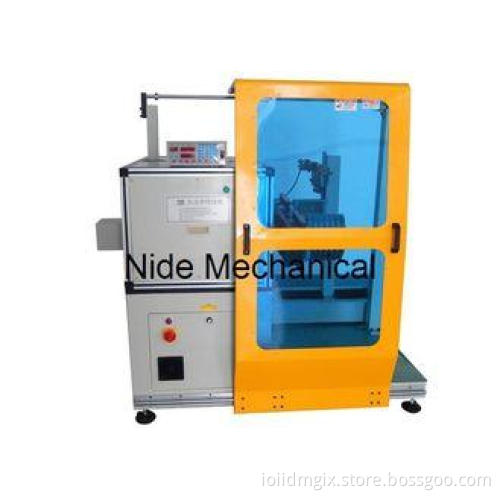

CNC Full Automatic Coil Winding Machine / Equipment for big power motor

Quick Detail:

1. Model No.: RX4-450

2. This machine could produce different dimension coils which is for same series size stator by adjusting the tooling.

3. It is suitable for winding the coil for big power motor.

4. Wire arraying width is 400mm.

Description:

Big Stator Coil Winding Machine adopts special purpose controller to realize the function of auto winding, auto arraying, slot acrossing, auto getting through wax tube and output setting, etc. This Big Coil Winding Machine is suitable for winding the coil for big power motor. Big Stator Coil Winding Machine could produce different dimension coils which is for same series size stator by adjusting the tooling, and tension is adjustable.

Technical parameter:

Swing diameter	≤450mm
Effective length of the tooling	≤400mm
Parallel wire number	≤16 pcs
Wire diameter	0.3~1.2mm
Wire arraying width	400mm
Power supply	220V/50/60Hz 2.2KW
Air supply	0.4~0.6MPa
Weight	950Kg
Dimension:	150017001550mm
