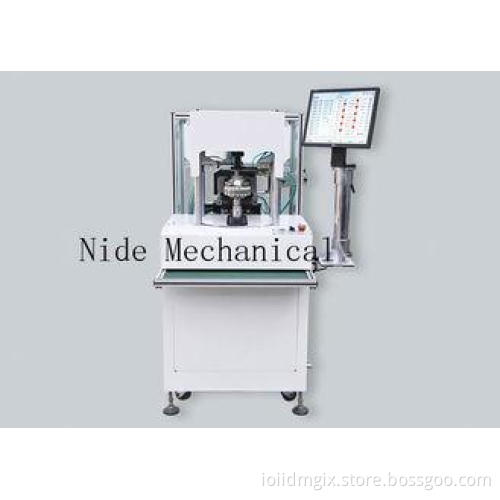

Automatic Ceiling Fan Stator Winding Machine / Machinery For External Armature
Quick Detail:
1. This machine is used for external armature.
2. It can automatically winding.
3. This machine is suitable for wire diameter range 0.15~1.5mm.
4. It is suitable for multi poles armature.
Description:
External Armature Winding Machine is used for external armature winding. Automatically indexing, automatically winding,only load and unload armature manually. It is easy for operation. And with the machine high automation, it is more cost-efficent.
Application:
This External Armature Winding Machine is used for external armature winding.
Main technical data:
|
Wire diameter |
0.15~1.5mm |
|
Stator O.D |
15~260mm |
|
Stack length |
7~60mm |
|
Turn number |
0~9999 |
|
Slot number |
Multi poles |
|
Winding speed |
0~1500RPM |
|
Air pressure |
5~7kg/cm2 |
|
Power supply |
220V/50/60Hz |
|
Total power |
2.5KW |
|
Weight |
600Kg |
|
Dimension |
1150*2350*1500m |
