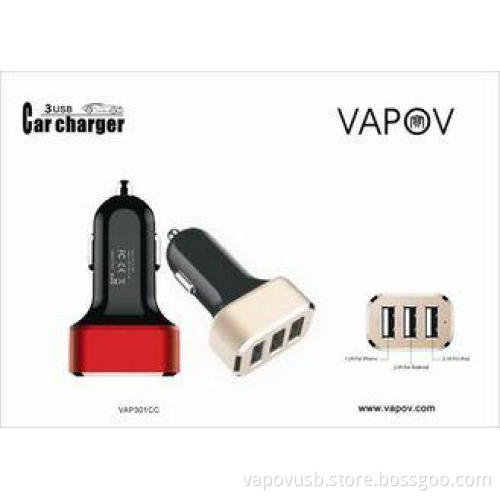

quick charging 4.1A 3 Port USB Car Charger for iPhone5 iP

quick charging 4.1A 3 Port USB Car Charger for iPhone5 iPhone6 and Samsung Galaxy Series

1.Product features:

1)Compatible with Apple, Android, Windowsphone, Blackberry.

2)Quick charging 3 devices at the same time.

2. Input Features:

1) Rated input voltage: DC12-24V

2) Input voltage range: DC10-28V

3) Efficiency: 88-93.8%

3. Output characteristics:

1) Rated output:5V 4.1A/4.4.4A/5.1A/5.4A

2) Unload output voltage: Min value +4.9VDC Max value+5.3VDC

3) Full load output voltage: Min value +4.75VDC Max value+5.25VDC

4) Output current:4.1A/4.4A/5.1A/5.4A

5) Over current protection: (Adjustable)

6) Turn on delay time: ≤3S

7) Full load Hold up time: 8mS

4. Protective properties:

1) Over current protection

Under any input conditions,when output current is greater than the set current,the protection

mode is on, after output current become lower than the set current, the charger will

automatically restart work.

2) Short circuit protection

Under any conditions, when short circuit occurs the protection mode is on, after short circuit

disappears, the charger will automatically restart work.

3) Over temperature protection

After the charger works for a long time, if the temperature is higher than that of IC set working

temperature, the protection mode is on, if the temperature drops to IC set temperature again,

the charger will automatically restart work.

4) Over voltage protection:

When output voltage is bigger than the set voltage, the protection mode is on, if the output

voltage drops to set voltage again, the charger will automatically restart work.

7.Salt spray test:Concentration of 5%,12 hours
