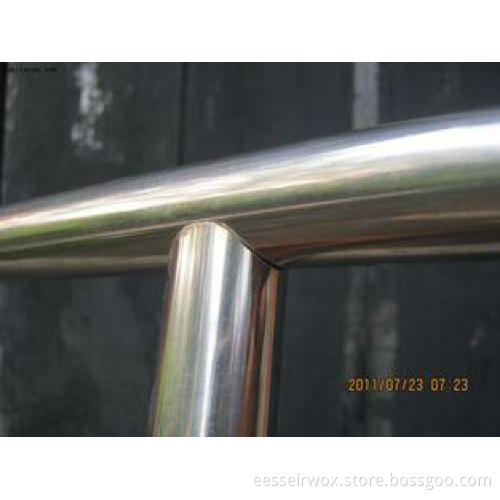

ASTM A312 TP316 / 316l Welded Stainless Steel Tubing , Galvanized Steel Pipe
Quick Detail:
1. Outer diameter:6mm-730mm.
2 Wall thickness:0.89mm-30mm.
3. length:1.5m-15m.
4. standard:
ASTM A312, A312, A269, A270, A789,A790, B165,B167, B407,B423
DIN17458
EN10216-5
GOST 9941-81,9940-81
JIS 3459
5. material:
Austenitic S.S. TP304/L TP316/L TP321/H,TP310/S, S34700 S31703.
Duplex S.S. S31803/2205, S32570/2507
Alloy: INCONEL (Ni-Cr alloy): 600,601,690, 800,800H, 825,221,
MONEL (Ni-Cu alloy): 400
Ni pipe: N6
Special grade: 904L,718
6. Surface: mill finish; mirror surface finish
7. Deliery condition: pickled and solution annealed
8. Process method: cold rolling; cold drawn
Specification:
|
Material |
TP304/304L, 316/316L, 310S, 317L, 321, 347H,etc. |
|
S31803, 32750, etc. |
|
|
2. Standard |
ASTM, ASME, DIN, EN, ISO,JIS, GOST, etc. |
|
3. Type |
welded |
|
4. Size range |
OD: 6mm-730mm. |
|
WT: from 0.89mm-30mm |
|
|
Length: fix length or un-fix length, Max 30meters |
|
|
5. Produce process |
Pilgering and cold drawn |
|
6. Surface process |
bright |
|
polish |
|
|
anneal |
|
|
7. Marking |
GRADE, welded, STANDARD, SIZE, HT NO. |
|
8. Package |
Bundles with waterproof cloth outside. |
|
or plywood box. |
|
|
9. Min order quantity |
500 KG |
|
10. Certificate |
ISO 9001, PED |
|
11. Third party ertificate |
BV, LR, SGS, TUV, CCS, ABS, etc. |
|
Chemical composition (%) of TP201 |
|||||||||||||
|
C |
Si |
Mn |
P |
S |
Ni |
Cr |
Mo |
Mo |
V |
||||
|
≤0.15 |
≤1.00 |
5.5-7.5 |
≤0.06 |
≤0.030 |
3.5-5.5 |
16-18 |
|
0.15-0.30 |
0 |
||||
|
Mechanical properties of TP304 |
|||||||||||||
|
Tensile strength/MPa |
Yield strength/MPa |
Elongation/(%) |
Reduction/(%) |
Impact/J |
Hardness/HB |
|
|||||||
|
≥500 |
≥200 |
≥50 |
/ |
/ |
/ |
|
|||||||
Description:
We are specialized in producing welded stainless steel pipe and seamless stainless steel pipe. Our factory has been established for more than 12years. Our business has got a great improvement. We believe that: “quality and service win the customers”. Welcome customers all over the world come to our company to give guidance for development.
