Electric Resistance Welding Carbon Steel Pipe ASTM A178 Thi
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Jiangsu China (Mainland) |
|---|

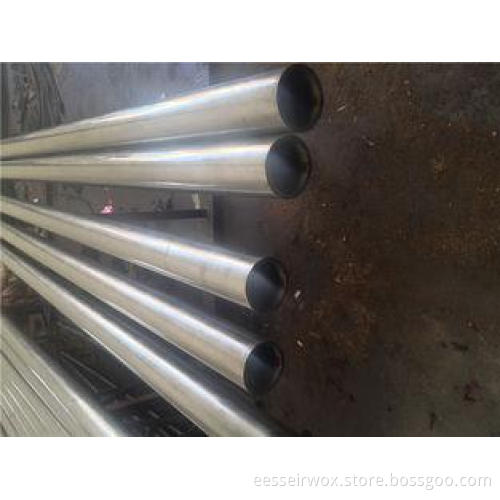

Electric Resistance Welding Carbon Steel Pipe ASTM A178 Thick Wall Metal Tubing
Detailed Product Description
|
Application: |
Fluid Pipe |
Delivery Condition: |
Annealed, Normalized, Tempered, Heat Treatment, BK, BKS, BKW, NBK, GBK |
|
Ends Type: |
Plain Ends, Bevel Ends |
Grade: |
Grade A, Grade C, Grade D |
|
Material: |
Carbon Steel |
Product Name: |
Seamless Steel Tubes |
|
Section Shape: |
Round |
Standard: |
ASTM A178, ASME SA178 |
|
Surface Treatment: |
Varnish |
Technique: |
Weld |
Quick Detail:
Standards: ASTM A178 (ASME SA178)
Grade: Grade A Grade C Grade D.
Size: (mm)
OD: 15.88mm to 114.3mm;
WT: 1.5mm to 6.0 mm;
Length: 6 m ~ 25m
Description:
Product name: ASTM A178/A178M
Electric Resistance Welded Carbon Steel and Carbon-Manganese Steel Boiler and Superheater Tubes
Standard executived: ASTM A178 A178M, ASTM DIN JIS or GB standard.
Grade: Grade A, Grade C, Grade D.
Outside diameter:15.88mm~114.3mm
Wall Thickness:1.5mm~6.0mm
Length:6m-24m,also can be manufactured according to customers' requirements
Type: Electric-Resistance-Welded Carbon Steel (ERW)
Ends:Plain ends or bevel ends
Delivery Conditions: BK,BKS,BKW,NBK,GBK( As drawn, quenched and tempered, normalized, annealed, stress-relieved)As different requirements,It including pickling,etc. As per Standard.
Coating for protection:black painting,anti-rust oiled or varnish,also can be required according to customers' requirements
Factory test and other terms:
1. Hydrostatic or Nondestructive Electric Test
2. Heat Treatment: according to Standard
3. Surface Condition:According to Standard.
4. Grain Size:According to standard
5. Sampling:flattening,flaring,grain size,Marking
6. we provide bevel end,plastic cap, varnish coating, oiled or black painted to prevent rustand other packing
service.
Applications:
ASTM A178 tubes are a kind of frequently-used tubes in our life,they are mainly used in manufacturing heating pipelines,containers,coal-saving devices,superheaters,arch tube,reheater tube,airway tube etc.
Chemical Requirements:
|
Composition,% |
|||
|
Element |
Grade A, Low-Carbon Steel |
Grade C, Medium-Carbon Steel |
Grade D Carbon-Manganese Steel |
|
Carbon Managanese Phosphorus,max Sulfur,max Silicon |
0.06-0.18 0.27-0.63 0.035 0.035 … |
0.35max 0.08max 0.035 0.035 … |
0.27max 1.00-1.50 0.030 0.015 0.01 min |
Mechanical Property:
Grade C & Grade D tubes shall conform to the requirements -tensile properties prescribed below:
|
TensileRequirements |
||
|
GradeC |
GradeD |
|
|
Tensilestrength,min,ksi[MPa] Yieldstrength,min,ksi[MPa] Elongationin2in.or50mm,min,% For longitudinal strip tests a deduction for Each1⁄32-in[0.8mm]decreaseinwallthicknessbelow5⁄16in.[8mm] From the basic minimum elongation of the following percentage points shall be made |
60[415] 37[255] 30 1.50A |
70[485] 40[275] 30 1.50A |
|
Grade A |
|
|
Tensilestrength,min,ksi[MPa] Yieldstrength,min,ksi[MPa] Elongationin2in.or50mm,min,% |
47[325] 26[180] 35 |
Outside diameter and Wall ThicknessTolerance:
|
Outside Diameter tol |
Wall thickness tol |
||
|
OD < 50 |
±0.05mm |
S < 4mm |
±12.5% |
|
OD > 50 |
±1% |
4--20mm |
+15/-12.5% |
|
S≧20mm |
±12.5% |
||
