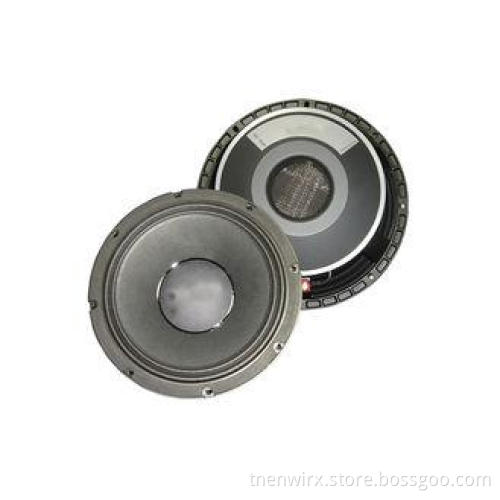

18” PA Audio Speakers 8 ohm for plastic speaker system
Quick Detail:
Brand Name: PROWEST
Model Number: DPA32020-18
Material: Alu
Use: Karaoke Player, Stage
Color: black
Place of Origin: Zhejiang, China
Description:
18” subwoofer
100dB sensitivity 1W/1M
1200W Power Handling
4” Interleaved Sandwich Voice coil
Optimal for high output subwoofers
Ferrite magnet structure
Applications:
DJ speaker, portable speaker, plastic speaker system
Specifications:
|
Model No.: |
DPA32020-18 |
|
18"woofer |
|
|
Magnet: |
100oz |
|
Voice Coil: |
4"Kpt(Copper clad aluminum flat wire) |
|
Impedance: |
8ohm |
|
Sensitivity: |
100dB/w/m |
|
Frequency response: |
31-2.8KHz |
|
RMS: |
450watts |
|
THIELE SMALL PARAMETERS |
|
|
Resonant Frequency (fs): |
31Hz |
|
Mechanical Q (Qms): |
8.03 |
|
Electromagnetic Q (Qes): |
0.36 |
|
Total Q (Qts): |
0.35 |
|
Compliance Equivalent Volume(VAS): |
420.7Ltr |
|
Mechanical Compliance of Suspension (Cms): |
0.16mm/N |
|
DC Resistance (Re): |
6.0ohm |
|
BL Product (BL): |
22.7T-M |
|
Diaphragm Mass lnc.Airload (Mms): |
158.1grams |
|
MOUNTING INFORMATION |
|
|
Overall Diameter: |
463mm |
|
Baffle Hole Diameter: |
423mm |
|
Mounting Holes Diameter: |
7mm |
|
Mounting Holes P.C.D: |
442mm |
|
Total Height: |
160mm |
|
Mounting Height: |
148mm |
|
N.W: |
7.3kg |
Competitive Advantage:
Lower price, high quality, good service, guarantee of delivery,
Tag:
audio speakers, loudspeakers, subwoofer, speaker subwoofer
