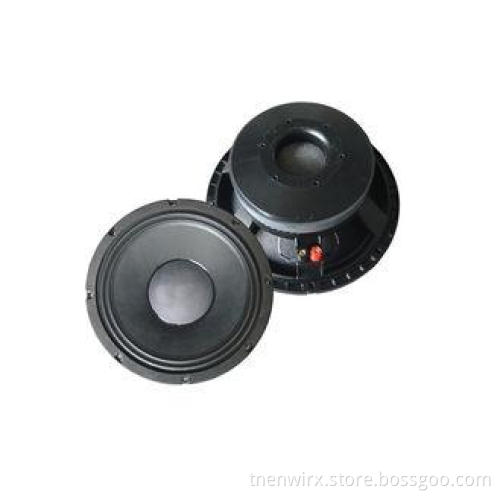

Metal Basket PA Audio Speakers high power , 12 Inch 110 oz
Quick Detail:
Brand Name: PROWEST
Model Number: DPA32022-12
Material: Alu
Use: Karaoke Player, Stage
Color: black
Place of Origin: Zhejiang, China
Description:
12” PA speaker
98dB sensitivity 1W/1M
900W Power Handling
4” Interleaved Sandwich Voice coil
Optimal for compact 2 or 3 way system
Ferrite magnet structure
Applications:
DJ speaker, portable speaker, plastic speaker system
Specifications:
|
Model No.: |
DPA32022-12 |
|
12"woofer |
|
|
Magnet: |
110oz |
|
Voice Coil: |
4"Kpt(Copper clad aluminum flat wire) |
|
Impedance: |
8ohm |
|
Sensitivity: |
98dB/w/m |
|
Frequency response: |
52.5-5KHz |
|
RMS: |
450watts |
|
THIELE SMALL PARAMETERS |
|
|
Resonant Frequency (fs): |
52.5Hz |
|
Mechanical Q (Qms): |
7.68 |
|
Electromagnetic Q (Qes): |
0.38 |
|
Total Q (Qts): |
0.36 |
|
Compliance Equivalent Volume(VAS): |
83.5Ltr |
|
Mechanical Compliance of Suspension (Cms): |
0.18mm/N |
|
DC Resistance (Re): |
5.2ohm |
|
BL Product (BL): |
15.2T-M |
|
Diaphragm Mass lnc.Airload (Mms): |
50.6grams |
|
MOUNTING INFORMATION |
|
|
Overall Diameter: |
320mm |
|
Baffle Hole Diameter: |
286mm |
|
Mounting Holes Diameter: |
6.5mm |
|
Mounting Holes P.C.D: |
299mm |
|
Total Height: |
141mm |
|
Mounting Height: |
126mm |
|
N.W: |
8.0kg |
Competitive Advantage:
Lower price, high quality, good service, guarantee of delivery,
Tag:
PA Speakers, loudspeakers, woofers, 12 speaker
