Manual Automatic Barrier Gate

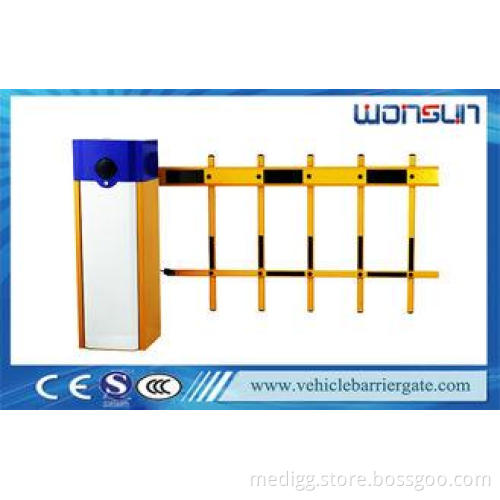

2 Fence Boom Automatic Barrier Gate for Hospital / Building / Government

Quick Detail:

Name: Automatic barrier gate
Speed:1s,1.8s.3s 6 seconds
Feature:Straight boom
Rated Power:80W
Certificate:CE, ISO, SGS
Net Weight:48KG
Voltage:AC220V, AC110V


Model Selection and Differences

Functions & Features

1) Manual release
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal radiating
4) Motor cooling fan, solving the problem of heat-protection
5) Double safety limit switches (photocell electrical limit switch/motor memory sensor)
6) Reversing on obstacle
7) Auto-closing
8) Support the INFRARER PHTOCELL for anti-bumping function (optional)
9) Support the external and internal VEHICLE LOOP DETECTOR (optional)
10) Traffic light interface
11) Wire control (switch signal)/ Remote control (418MHZ)
12) RS485 communication module (optional)


Specifications

TYPE: WST1161

SECURITY SYSTEM: Photocell

MEASUREMENT: 335mm(L) x 335mm (W) x 935mm (H)

TORQUE (Nm): 120 NmMAX.

WORKING TIME: 20°C, 260 times open and close

MOTOR OUTPUT POWER: 400 W

VOLTAGE: AC220

WEIGHT: 50 kg

BAR LENGHT: 1m - 6m

OPENING TIME: 1S, 1.8S, 3S, 6S

CONTROL SYSTEM: Mikroprocessor Control Unit

MANUEL SYSTEM: Yes

ACCESS: Remote Control, Manuel Button Integrated

ENVIRONMENTAL TEMP.: -20°C ~ +60°C
