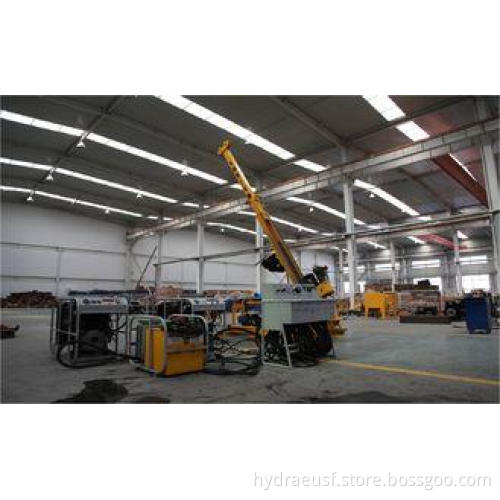

Portable Surface Core Exploration Drilling Rig With Hydraulic System CSD500C
- Convenience to break down into light pieces
- Ease to carry to the job site, with weight less than 280kgs each unit
- Robust structure plus exact control system ensures high penetration and outstanding reliability
- Mast dumping guarantees perfect stability during drilling;
- Independent hydraulic jacks facilitates leveling of the rig
- Great convenience of control of feed pressure;
- Standardized parts and components make maintenance and repairing easy
- Real time reading of drilling data on gauges on the control panel;
- Mud pump and mixer powered by the rig’s hydraulic system, controlled directly on the rig’s panel
- Top grade hydraulics of European origin
- Experienced engineers plus adequate spare parts ready to provide full service.
- The whole rig is driven by hydraulic and equipped with kinds of safety guards on controls of pulling force,
- feed force, and output torque etc.
- Drilling pressure can be adjusted precisely in accordance with geological conditions.
Description:
CSD500C man portable drilling rig is specially designed for diamond drilling at complex terrain and inaccessible locations. Its modularized design features its extreme convenience to break down into light pieces and ease to carry to the job site, with weight less than 280kgs each unit. This rig consists of diesel power unit, hydraulic system, control panel, mast, main winch, wire line winch, drill head, feed system and foot clamp, etc. And robust structure plus exact control system ensures high penetration and outstanding reliability.
Specifications:
|
Drilling Capacity |
|
|
Dia of Drill Rod |
BS,NS,HS |
|
Drilling Depth |
600m 400m 200m |
|
Hydraulic System |
|
|
Pressure |
22MPa |
|
Cooling |
Air Cooled |
|
Power System |
|
|
Model |
Yanmar 4TNV84T |
|
Power |
35.5KW(each) |
|
Engine RPM |
2,800rpm |
|
Drill Head |
|
|
Max Torque |
1,120Nm |
|
Max Rotation ,RPM |
1,100rpm |
|
Feed Stroke |
1.8m |
|
Max Inside Diameter |
97mm |
|
Max Pull /Max Push |
70KN/35KN |
|
Main Winch |
|
|
Max Pull |
30KN |
|
Pulling Speed |
35m/min |
|
Rope Diameter |
14mm |
|
Rope Length |
30m |
|
Wireline Winch |
|
|
Max Pull |
11KN(bare drum) |
|
Pulling Speed |
94m/min(bare drum) |
|
Rope Diameter |
5mm |
|
Rope Length |
500m |
|
Mast |
|
|
Length |
6.2m |
|
Drilling Angle |
45°-90° |
|
Foot Clamp |
|
|
Drill Rod |
BS, NS, HS |
|
Transporting Dimensions |
|
|
Main Frame Unit |
3,450×1,800×1,500mm |
|
Power Unit |
1,280×680×980mm |
|
Operation Unit |
1,030×655×1,135mm |
|
Max Unit Weight After Dismounting |
|
|
|
280kg |
Competitive Advantage:
a. We manufacture the best Hydraulic Drilling Rigs in China
b. Our products dominate more than 80% domestic market shares
c. We are the OEM of the UDR series drilling rigs
d. Our drilling rigs are now working in more than 30 countries all around the world
