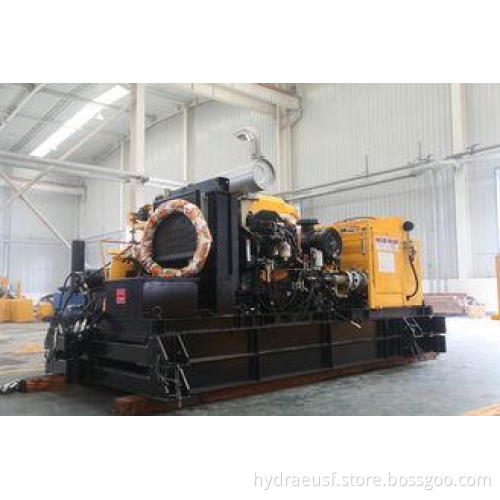

Hydraulic Surface Core Drill Rig Machine CSD1300H , BQ NQ HQ PQ Drill Rod
MAIN FEATURES:
CSD1300H core drilling rig is specially designed for surface wire line core drilling. Modularized design makes the rig easy to break down and put together, facilitating transportation to most inaccessible areas. Robust structure plus strong power ensures high penetration rate and out standing reliability. Its full hydraulic concept includes virtually all operation functions that prevail on the latest models around the world.
Specifications:
|
Drilling Capacity |
|
|
Dia of DrillRod |
BQ,NQ,HQ,PQ |
|
Drilling Depth |
1,300m 1,000m 700m 400m |
|
Hydraulic System |
|
|
Pressure |
26MPa |
|
Cooling |
Air Cooled |
|
Power System |
|
|
Model |
Cummins 6BTA-5.9 |
|
Type |
Turbo Charged |
|
Power |
132KW |
|
Engine RPM |
2,500rpm |
|
Drill Head |
|
|
Max Torque |
4,257Nm |
|
Max Rotation ,RPM |
1,182rpm |
|
Feed Stroke |
2,000mm |
|
Max Inside Diameter |
117mm |
|
Max Pull /Max Push |
127KN/50KN |
|
Main Winch |
|
|
Max Pull |
68KN |
|
Pulling Speed |
50m/min |
|
Rope Diameter |
16mm |
|
Rope Length |
30m |
|
Wireline Winch |
|
|
Max Pull |
11KN(bare drum) |
|
Pulling Speed |
120m/min |
|
Rope Diameter |
6.6mm |
|
Dump Length |
1,000m |
|
Mast |
|
|
Length |
10m |
|
Drilling Angle |
45°-90° |
|
Foot Clamp |
|
|
Drill Rod |
BQ, NQ, HQ, PQ |
|
Transporting Dimensions |
|
|
L×W×H |
4,700×2,150×2,000mm |
|
Max unit weight after dismounting |
|
|
|
700kg |
Competitive Advantage:
a. We manufacture the best Hydraulic Drilling Rigs in China
b. Our products dominate more than 80% domestic market shares
c. We are the OEM of the UDR series drilling rigs
d. Our drilling rigs are now working in more than 30 countries all around the world
