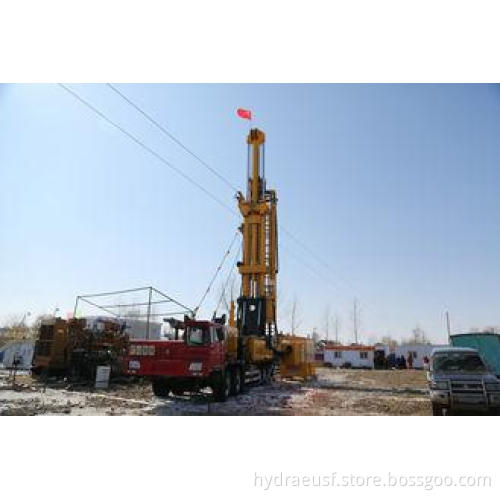

Truck Mounted Hydraulic Drilling Rig CMD100 For Coalbed Gas

Truck Mounted Hydraulic Drilling Rig CMD100 For Coalbed Gas Drilling

• Truck chassis mounted for easy transport and less working intensity.
• The whole rig is driven by hydraulic and equipped with kinds of safety guards on controls of pulling force, feed force, and output torque and drill head feed locking, etc.
• Due to design of two gear shift on drill head, difference torque and rotation speed can be realized and meet requirements of different hole size and drilling technique, max. Torque 27,500N.m for big hole size drilling and max. Rotation speed 300rpm for coring drilling.
• Drill head can be set to 80° angle and main spindle floats 102mm, both for easy rod handling and less working intensity.

Main Introduction:

CMD100 is designed for coalbed gas drilling, water well drilling, mine rescue drilling, shallow petroleum/natural gas drilling and mineral investigation etc.

The following below defines all the drilling techniques of CMD100

· Circulation coring drilling

· Single wall rod, air-lift RC drilling

· Auger drilling

· Diamond core drilling

· DTH hammer, normal circulation drilling/RC drilling

The whole system consists of rotation head, feed system, power unit, mast, truck base, jib boom&winch, power break out, foot clamp and water pump, etc.

The features below defines CMD100 coalbed gas drilling rig

1.Truck chassis mounted for easy transport and less working intensity.

2. The whole rig is driven by hydraulic and equipped with kinds of safety guards on controls of pulling force, feed force, output torque and drill head feed locking, etc.

3. Due to design of two gear shift on drill head, difference torque and rotation speed can be realized and meet requirements of different hole size and drilling technique, max. torque 24,750N.m for big hole size drilling and max. rotation speed 300rpm for coring drilling.

4. Drill head can be set to 80° angle and main spindle floats 102mm, both for easy rod handling and less working intensity.

5. Drilling pressure can be adjusted precisely in accordance with geological conditions.

6. Braking system set on main shaft of drill head for directional drilling and horizontal drilling.

7. Telescopic design of mast facilitates rods&tools handling and provides 12.5m feed stroke.

8. Air/water pipe line mounted to connect related accessories of different drilling techniques, like fluid drilling, air drilling and foaming drilling, etc.
