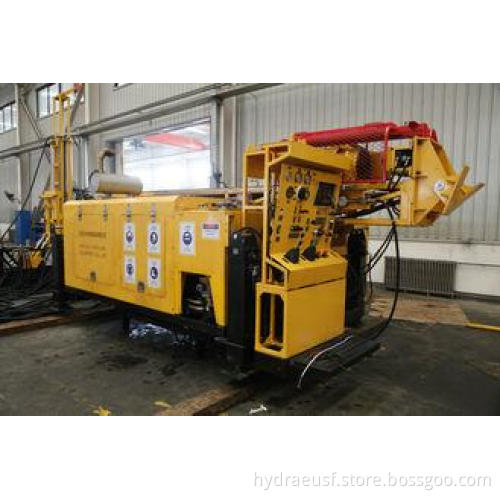

Track Crawler Mounted Hydraulic Drilling Rig On Ground Surface CSD1300G
Description:
CSD1300G hydraulic rig is specially designed for diamond drilling on ground surface. Track crawler mounted rig facilitates moving around with great convenience. Multi-pressure gauge allows for monitoring working status of the rig systems. Robust structure plus strong power supply ensures high penetration rate and outstanding reliability. The up to date design of hydraulic system makes CSD1300G one of the most favored models around the world.
Specifications:
|
Drilling Capacity |
||
|
Dia of Drill Rod |
BS,NS,HS,PS |
|
|
Drilling Depth |
1,300m 1,000m 700m 400m |
|
|
Hydraulic System |
||
|
Pressure |
26MPa |
|
|
Cooling |
Air Cooled |
|
|
Power System |
||
|
Model |
Cummins 6BTA5.9-C180 |
|
|
Type |
Turbo Charged |
|
|
Power |
132KW |
|
|
Engine RPM |
2,500rpm |
|
|
Drill Head |
||
|
Max Torque |
4,257Nm |
|
|
Max Rotation ,RPM |
1,182rpm |
|
|
Feed Stroke |
3.5m |
|
|
Max Inside Diameter |
117mm |
|
|
Max Pull/Max Push |
127kN/50kN |
|
|
Main Winch |
||
|
Max Pull |
68KN |
|
|
Pulling Speed |
Low:28m/min High:65m/min |
|
|
Rope Diameter |
16mm |
|
|
Rope Length |
30m |
|
|
Wireline Winch |
||
|
Max Pull |
11KN(bare drum) |
|
|
Pulling Speed |
120m/min(bare drum) |
|
|
Rope Diameter |
6.6mm |
|
|
Rope Length |
1,000m |
|
|
Mast |
||
|
Length |
10m |
|
|
Drilling Angle |
45°-90° |
|
|
Dump Length |
1.4m |
|
|
Foot Clamp |
||
|
Drill Rod |
BS, NS, HS, PS |
|
|
Travelling Capacity |
||
|
Max.Permissible Gradient |
30° |
|
|
Max.Travelling Speed |
2km/h |
|
|
Transporting Dimensions |
||
|
L×W×H |
5,430×2,300×2,600mm |
|
|
Total Weight |
||
|
|
10.3t |
|
Competitive Advantage:
a. We manufacture the best Hydraulic Drilling Rigs in China
b. Our products dominate more than 80% domestic market shares
c. We are the OEM of the UDR series drilling rigs
d. Our drilling rigs are now working in more than 30 countries all around the world
About US:
Cortech is the leading provider of drilling products and mineral exploration drilling services in China today. The company is the only integrated drilling services and product provider, combining engineering design excellence, OEM manufacturing facilities and the most experienced drilling services group in the business. Within only 5 years of development, Cortech has become the true market leader in hydraulic core drilling rig products provider in China. The company ultimately delivers reliability, productivity, safety and user friendship to the customers.
