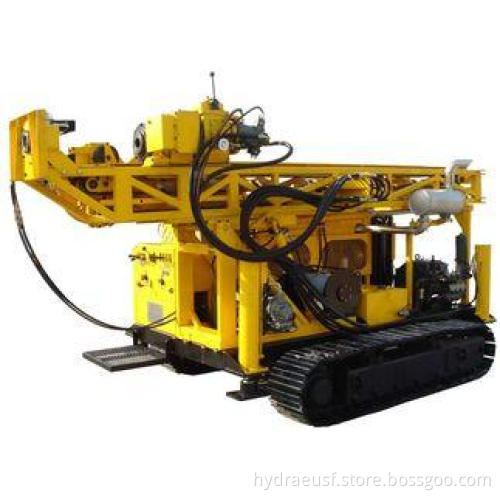

Diamond Core Full Hydraulic Drilling Rig , Track Crawler Mounted Rig CSD1300L
Description:
CSD1300L core drilling rig is specially designed for diamond core drilling. Track crawler mounted rig facilitates moving around with great convenience. Robust structure plus strong power supply ensures high penetration rate and outstanding reliability. Its full hydraulic concept includes virtually all operational functions that prevail on the latest models around the world.
Specifications:
|
Drilling Capacity |
|
|
Dia of Drill Rod |
BS,NS,HS,PS |
|
Drilling Depth |
1,300m 1,000m 700m 400m |
|
Hydraulic System |
|
|
Pressure |
26MPa |
|
Cooling |
Air Cooled |
|
Power System |
|
|
Model |
Cummins 6BTA5.9 –C180 |
|
Type |
Turbo Charged |
|
Power |
132KW |
|
Engine RPM |
2,500rpm |
|
Drill Head |
|
|
Max Torque |
4,257Nm |
|
Max Rotation ,RPM |
1,182rpm |
|
Feed Stroke |
3.5m |
|
Max Inside Diameter |
117mm |
|
Max Pull / Max Push |
127KN/ 50KN |
|
Main Winch |
|
|
Max Pull |
68KN |
|
Pulling Speed |
28m/min |
|
Rope Diameter |
16mm |
|
Rope Length |
30m |
|
Wireline Winch |
|
|
Max Pull |
11KN(bare drum) |
|
Pulling Speed |
120m/min |
|
Rope Diameter |
6.6mm |
|
Rope Length |
1,000m |
|
Mast |
|
|
Length |
10m |
|
Drilling Angle |
45°-90° |
|
Dump Length |
1.1m |
|
Foot Clamp |
|
|
Drill Rod |
BS, NS, HS, PS |
|
Travelling Capacity |
|
|
Max.Permissible Gradient |
30° |
|
Max.Travelling Speed |
2km/h |
|
Transporting Dimensions |
|
|
L×W×H |
5,100×2,350×2,600mm |
|
Total Weight |
|
|
|
8.5t |
Competitive Advantage:
a. We manufacture the best Hydraulic Drilling Rigs in China
b. Our products dominate more than 80% domestic market shares
c. We are the OEM of the UDR series drilling rigs
d. Our drilling rigs are now working in more than 30 countries all around the world
About US:
Cortech is the leading provider of drilling products and mineral exploration drilling services in China today. The company is the only integrated drilling services and product provider, combining engineering design excellence, OEM manufacturing facilities and the most experienced drilling services group in the business. Within only 5 years of development, Cortech has become the true market leader in hydraulic core drilling rig products provider in China. The company ultimately delivers reliability, productivity, safety and user friendship to the customers.
|
Place of Origin: |
China |
|
Brand Name: |
Cortech |
|
Certification: |
CE, ISO9001 |
|
Model Number: |
CSD1300L |
|
Minimum Order Quantity: |
1 Set |
|
Packaging Details: |
Standard Export Packing |
|
Delivery Time: |
2 Weeks |
|
Payment Terms: |
FOB, CIF, DDP, DDU |
