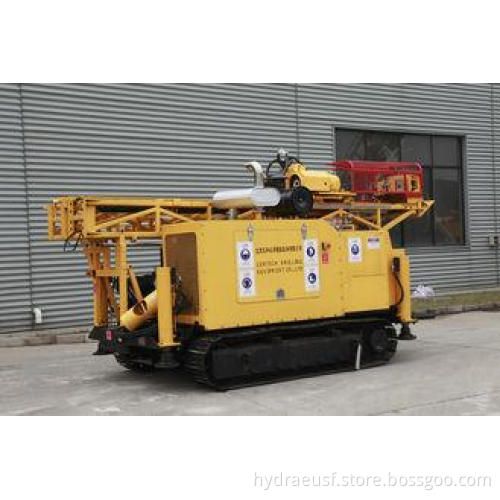

2000m Depth Diamond Drilling Rig , Hydraulic Core Drilling Machine c
Description:
CSD1800X core hydraulic rig is specially designed for surface diamond drilling,which is defined by hydraulically driven, easy to operate, precise control, high rate of coring. Special design of rotation head side shift by hydraulic largely reduces working tensions and guarantees personal safety.
Specifications:
|
Drilling Capacity |
|
|
Dia of Drill Rod |
BS,NS,HS,PS |
|
Drilling Depth |
2,000m 1,700m 1,200m 700m |
|
Hydraulic System |
|
|
Pressure |
28MPa |
|
Cooling |
Air Cooled |
|
Power system |
|
|
Model |
Cummins 6CTA8.3-C240 |
|
Type |
Turbo Charged |
|
Power |
179KW |
|
Engine RPM |
2,200rpm |
|
Drill Head |
|
|
Max Torque |
5,500Nm |
|
Max Rotation ,RPM |
1,200rpm |
|
Feed Stroke |
3.5m |
|
Max Inside Diameter |
117mm |
|
Max Pull /Max Push |
189KN/50KN |
|
Main Winch |
|
|
Max Pull |
135KN |
|
Pulling Speed |
33m/min(Low),49m/min(High) |
|
Rope Diameter |
22mm |
|
Rope Length |
35m |
|
Wireline Winch |
|
|
Max Pull |
11KN(bare drum) |
|
Pulling Speed |
120m/min |
|
Rope Diameter |
6.6mm |
|
Rope Length |
1,500m |
|
Mast |
|
|
Length |
10m |
|
Drilling Angle |
45°-90° |
|
Dump Length |
1.1m |
|
Foot Clamp |
|
|
Drill Rod |
BS,NS,HS,PS |
|
Travelling Capacity |
|
|
Max.Permissible Gradient |
30° |
|
Max.Travelling Speed |
2km/h |
|
Transporting Dimensions |
|
|
L×W×H |
5,250×2,320×2,600mm |
|
Total Weight |
|
|
|
11.3t |
Competitive Advantage:
a. We manufacture the best Hydraulic Drilling Rigs in China
b. Our products dominate more than 80% domestic market shares
c. We are the OEM of the UDR series drilling rigs
d. Our drilling rigs are now working in more than 30 countries all around the world
About us:
Cortech is the leading provider of drilling products and mineral exploration drilling services in China today. The company is the only integrated drilling services and product provider, combining engineering design excellence, OEM manufacturing facilities and the most experienced drilling services group in the business. Within only 5 years of development, Cortech has become the true market leader in hydraulic core drilling rig products provider in China. The company ultimately delivers reliability, productivity, safety and user friendship to the customers.
