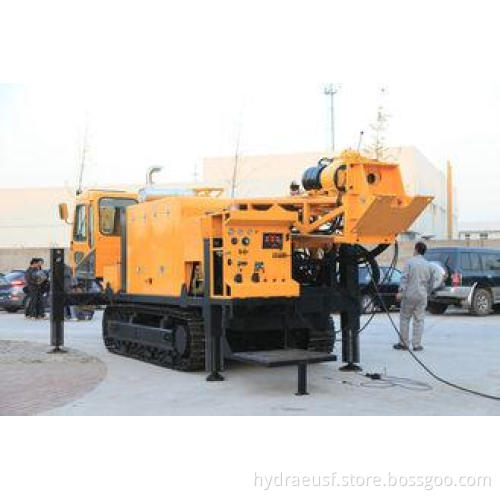

Geological Exploration Diamond Core Drilling Rig Hydraulic System CSD3000
Description:
CSD3000 core drilling rig is specially designed for diamond core drilling. It provides precise control on the drilling capacity. The drill head is designed to slide and dump, together with the full angle rotation structure for drill mast, it effectively reduces manual inputs and improves efficiency. The hydraulic legs are stretchable, which broaden the bearing surface, and ensure outstanding reliability. Its full hydraulic concept includes virtually all operational functions that prevail on the latest models around the world.
Specifications:
|
Drilling Capacity |
|
|
Dia of Drill Rod |
BS,NS,HS,PS |
|
Drilling Depth |
3,000m 2,300m 1,600m 1,050m |
|
Hydraulic System |
|
|
Pressure |
28MPa |
|
Cooling |
Air Cooled |
|
Power System |
|
|
Model |
Cummins 6LTAA8.9-C325 |
|
Type |
Turbo Charged |
|
Power |
239KW |
|
Engine RPM |
2,200rpm |
|
Drill Head |
|
|
Max Torque |
8,170Nm |
|
Max Rotation ,RPM |
1,250rpm |
|
Feed Stroke |
3,450mm |
|
Max Inside Diameter |
117mm |
|
Max Pull /Max Push |
250KN/110KN |
|
Main Winch |
|
|
Max Pull |
181.44KN |
|
Pulling Speed |
Low:33m/min High:70m/min |
|
Rope Diameter |
24mm |
|
Rope Length |
41m |
|
Wireline Winch |
|
|
Max Pull |
18KN(bare drum) |
|
Pulling Speed |
150m/min(bare drum) |
|
Rope Diameter |
6.6mm |
|
Rope Length |
2,500m |
|
Mast |
|
|
Length |
11.2-13.7m |
|
Drilling Angle |
45°-90° |
|
Dump Length |
1.4m |
|
Foot Clamp |
|
|
Drill Rod |
BS, NS, HS, PS |
|
Travelling Capacity |
|
|
Max.Permissible Gradient |
30° |
|
Max.Travelling Speed |
2km/h |
|
Transporting Dimensions |
|
|
L×W×H |
11,240×2,310×3,330mm |
|
Total Weight |
|
|
|
23.5t |
Competitive Advantage:
a. We manufacture the best Hydraulic Drilling Rigs in China
b. Our products dominate more than 80% domestic market shares
c. We are the OEM of the UDR series drilling rigs
d. Our drilling rigs are now working in more than 30 countries all around the world
