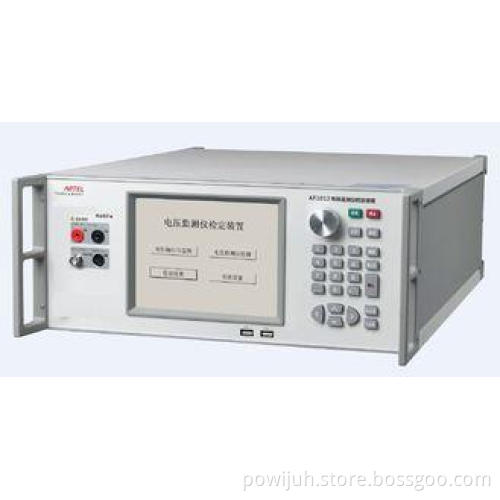

Voltage Monitor Test Equipment Electrical Calibrators For Power Grid Corporation

Profile:

AT1012 is suitable for the measurement departments of research institution, power grid corporation, railway,

large industrial and mining enterprise and national measurement institution at all levels.

Main functions:

Test various voltage monitors;

Manually or automatically test each function according to voltage monitor test regulations.

Main features:

8 inch color touch screen, interface friendly, easy to operate.

Communicate with tested meter thru RS-232/485;

Automatically calculate error of tested voltage monitor, and related data can be downloaded by U disk;

Self-protection, alarming and displaying fault location for output overload and voltage short circuit;

Automatically detect, diagnose and alarm for failure.

Remotely updating online, easily achieve software update;

Support calibrating by userself.

AC Voltage output:

Range: 57.7V, 100V, 220V, 380V;

Adjusting range: (0~120) %RG, RG refers to range, similarly hereafter;

Adjusting resolution: 0.01%RG, 0.1%RG, 1%RG, or 10% RG;

Stability: 0.01%/2min;

Distortion: ≤0.1% (Non capacitive load);

Max output load: 25VA;

Measurement accuracy: 0.05%RG;

Clock accuracy:

Clock accuracy: 0.05 s/day;

Other parameters:

Power supply: 90-265VAC/DC

Power frequency: 50Hz~60Hz

Power consumption: 100VA

Environment condition: 20℃~30℃,Humidity: RH≤85%

Storage environment: -20℃~50℃

Weight: 15kg
