Energy Saving Automatic Paper Tea Cup Making Machine For Co
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|
40-50 min Tea Cup Making Machine Supply Coffee Multiple Shop
Quick details:
| Paper Cup Size | 3-12 oz (mold exchangeable) |
| Productivity | 60-70 Pcs/min |
| Control System | PLC Control & Sever-motor Control |
| Transmission system | Gear-Motor |
| Drive Way | Gear Drive |
| Lubrications system | Self-Lubrication system |
| after-sales service | Free training, Engineers available to service machinery overseas |
Technical Specification:

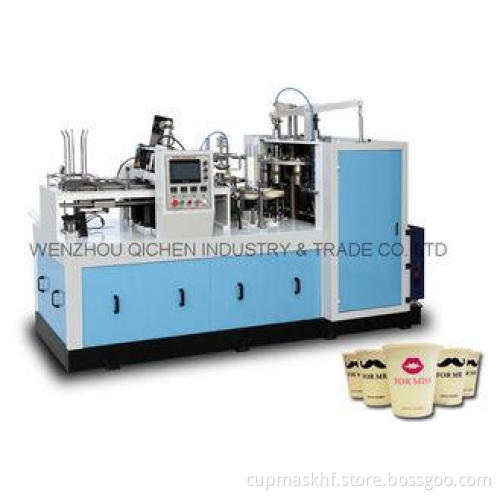

| Model | ZBJ-A12 Automatic Paper Cup Machine |
| Paper Cup Size | 3oz-12oz (mold exchangeable) |
| Raw Material | One-side PE (polyethylene) film coated / laminated paper |
| Suitable paper weight | 140-350gsm |
| Rated Productivity | 40-50 pcs/ minute |
| Power Source | 220V/380V 50Hz or other required |
| Total Power | 4.8KW |
| Total Weight | 1600KG |
| Package Size(L x W x H) | 2800 x1300 x1700mm |
| Working Air Source | 0.4Mpa, Air Out-put:0.6 m3/minute |
| Making Double PE coated paper cups, need to buy an air compressor | |
Competitive Advantage:
1. We use two gear boxes, 125 type and 100 type
2. We use Gear-motor instead of speed reducer and motor
3. We use PLC control and serve-motor control
4. We use 3 Cam to control the folding process.
5. We use thre times paper feeding process.
6. We use self-lubrication for ZBJ-X12 Paper cup forming machine
The part we used VS normal one:
1) We use 125 type gear box, which has two years warranty.
Normally, 100 type gear box is used.
- 125 type is much bigger and stronger than 100 type.
- 100 type gear box, if used for one year, is easier to have problem.
2) We use 1:30 100 type Speed reducer
Normally 1:20 80 type speed reducer is used.
- 1:30 100 type speed reducer is more stable than 1:20 80 type speed reducer.
The speed reducer and the gear box are very important to the machine. They control the whole machine, if there are some problems with these two parts, then, you have to change the gear box and speed reducer. In this case, the machine should be taken apart, because they are inside the machine. It takes much time, and sometimes you cannot install the machine correctly. So it is necessary to use better gear box and speed reducer.
3) We useφ30 import steel shaft for the machine.
Normally φ25 steel shaft is used.
- φ30 steel shaft has longer life and is resistant to wear.
4. We use multilayer suckers for the paper taking
Normally single sucker is used.
- Multilayer sucker is much powerful and make the process successful.
- Multilayer sucker has long life; when the top is wornout, just cut the top.
Applications:
Produce for Coffee Cup, Tea Cup, Juice Cup, Ice Cream Cup etc
Process of Paper Cup Making:
- Printing Step:
The PE coated paper should be printed with different design and different color. So when we make the paper cups, there will be beautiful design with logo on the cups.
- Cutting Step:
In this step, you can cut the paper into different sizes paper fan.
For paper roll for bottom, need to use slitting machine to cut big roll into small roll.
- Forming Step:
You should put the paper fan on the machine, so the paper fan can be folded by the paper cup machine. Then the paper cups are formed, we can use the cups and enjoy delicious drinks.
Packing:
FCL: paper cup machine with wood tray and plastic film.
LCL: paper cup machine with wood box and plastic film.
We will spraying oil in paper cup machine for keeping rust away
