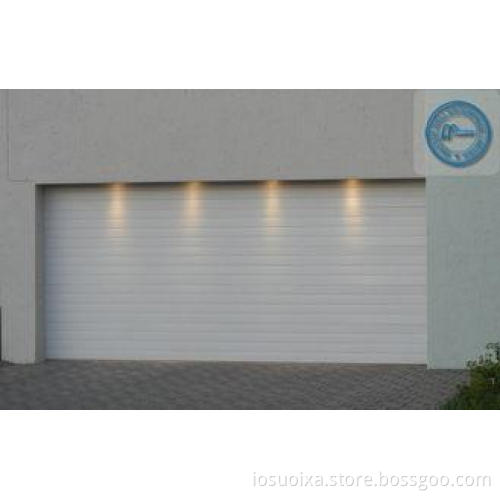

Steel Automatic Garage Doors

White Sliding Automatic Garage Doors Energy Saving For EU Standard

Quick Detail:

1. Energy saving heat insulation

2. RAL Color panel

3. High strength PU rigid foam

4. Galvanized steel panel

5. Finished surface

6. High resistance to bending

7. The reasonable price

8. Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).

Description:

1. Material: galvanized steel with Polyurethane insulation
2. Steel thickness: 0.35mm, 0.45mm ( white color only)
3. Panel thickness:40 mm
4. Foaming material: polyurethane
5. Density of foam: 43-45kg/m³
6. Panel type: Finger protection panel & non-finger protection panel
7. Construction: sandwich contraction
8. Panel width: 440-550mm
9. Max panel length: 12m
10. Weight: 8.5kg/m²
11. Surface finishes: wood grain, orange peel, flush
12. Panel design: rectangle woodgrain design
13. Standard package: carton box with film for 4 or 5 pieces of panel, usually as full set of garage door panel
14. Normal color: Off white RAL9016

Normal Solid colors: Brown RAL8014, Anthracite grey RAL7016, Silver RAL9006, Light beige RAL1019, Ebony RAL9004, Red RAL3000, Blue RAL5015;

Timber color: Mahogany, Gold oak, Dark oak, Black walnut

15. Single track and double track:

Single track only: 1 pair vertical track, 1 pair horizontal track, needs min headroom 350mm

Double track only: 1 pair vertical track, 1 pair horizontal track, 1 pair LHR horizontal track, needs min headroom 150mm

16. Full set of hardware: Torsion spring, Hinges, Cable drum with cable, Central bracket with bearing, 1'' tube shaft, Mounting brackets and other accessories for a complete set
17. Emergency lock for manual operation when power off
18. Residential garage door opener: 800N, 1000N, 1200N, 1500N

Applications:

The panel can be inserted the windows to allow daylight to enter your garage, provide it with further uses, e.g. as a workshop or hobby room.

A sectional door leaf glides vertically upwards under the garage ceiling. This provides you with more space than with a up-and-over door. Please kindly see attached drawing of garage door.

Specifications:

Competitive Advantage:

1. Low MOQ: One set is available for checking our quality first conveniently.

2. Good Quality: Your client satisfied on our quality. You can get good reputation from your market and obtain more orders.

3. Good Service: Our professional service before and after sale.

4. OEM is welcome

5. Rot-proof rubber seal for maximum light and air sealing between the sections.

6. Energy saving heat insulation due to high-strength PU rigid foam. The special foam meets the high quality requirements of industrial doors.

7. High-level resistance to bending and twisting. Secures garages against burglars and makes your door wind and weather proof.

8. Robust surface, easy to clean, the finished surface is extremely robust and easy to maintain.

About Master Well:

We have been in garage door for years, including the panel and accessories, such as torsion spring, top bracket, bottom bracket, central bearing bracket, roller ( nylon, plastic or steel roller), lift handle, cable drum, tube shaft, flag bracket and so on. Also we provide the service of garage door installation, hope we can be helpful in your business.

We are the team, just contact us to have a win-win relationship!

We are always ready to support for you to provide the professional service for you.
