Wood Grain Automatic Garage Doors / Sectional Garage Door F
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Wuxi city, Jiangsu |
|---|

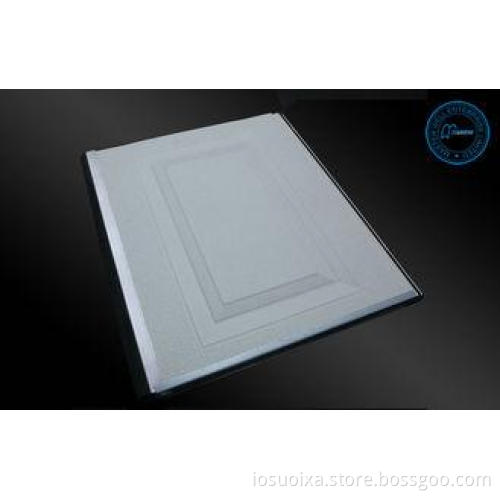

Wood Grain Automatic Garage Doors / Sectional Garage Door For Residential
Quick Detail:
1. Sectional garage door panel with finger protection
2. RAL Color panel
3. High strength PU rigid foam inside of finished steel surface
4. Galvanized steel panel
5. High resistance to bending
6. 40mm thickness
Description:
- Material: galvanized steel with Polyurethane insulation
- Steel thickness: 0.35mm, 0.45mm ( white color only)
- Panel thickness:40 mm
- Foaming material: polyurethane
- Density of foam: 43-45kg/m3
- Panel type: Finger protection panel & non-finger protection panel
- Construction: sandwich contraction
- Panel width: 440-550mm
- Max panel length: 12m
- Weight: 8.5kg/m2
- Surface finishes: wood grain, orange peel, flush
- Panel design: rectangle woodgrain design
- Standard package: carton box with film for 4 or 5 pieces of panel, usually as full set of garage door panel
- Normal color: Off white RAL9016
Normal Solid colors: Brown RAL8014, Anthracite grey RAL7016, Silver RAL9006, Light beige RAL1019, Ebony RAL9004, Red RAL3000, Blue RAL5015;
Timber color: Mahogany, Gold oak, Dark oak, Black walnut
- Single track and double track:
Single track only: 1 pair vertical track, 1 pair horizontal track, needs min headroom 350mm
Double track only: 1 pair vertical track, 1 pair horizontal track, 1 pair LHR horizontal track, needs min headroom 150mm
- Full set of hardware: Torsion spring, Hinges, Cable drum with cable, Central bracket with bearing, 1'' tube shaft, Mounting brackets and other accessories for a complete set
- Emergency lock for manual operation when power off
- Residential garage door opener: 800N, 1000N, 1200N, 1500N
Applications:
The panel can be inserted the windows to allow daylight to enter your garage, provide it with further uses, e.g. as a workshop or hobby room.
Specifications:
|
1 |
Material |
Galvanized steel with PU foaming inside |
|
2 |
Material Construction |
Steel-foam-steel, sandwich panel |
|
3 |
Thickness |
Section thickness 40mm; |
|
4 |
Section Style |
Non-finger protection (SN40); |
|
5 |
Section Size Range |
430mm-550mm in height |
|
6 |
Section Surface Finish |
Wood grain, orange peel, flush |
|
7 |
Front-side design |
Wood grain, with Rectangle/stripes design |
|
8 |
Backside design |
Wood grain, with Stripe design |
|
9 |
Accessories |
Single Track with min headroom for 350mm; |
|
10 |
Door Openers |
AC220V or 110V; DC Motor; 800-1500N |
|
11 |
Opening Way |
Electrical control and Manual operation |
|
12 |
Color |
White (RAL9016), other colors can be customized |
Competitive Advantage:
1. Low MOQ: One set is available for checking our quality first conveniently.
2. Good Quality: Your client satisfied on our quality. You can get good reputation from your market and obtain more orders.
3. Good Service: Our professional service before and after sale.
4. The reasonable price
5. Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
6. OEM is welcome.
Package:
The garage door panels are packed as full set of door by carton box and film, kindly check out the following information about packing :
About Master Well:
We have been in garage door for years, including the panel and accessories, such as torsion spring, top bracket, bottom bracket, central bearing bracket, roller ( nylon, plastic or steel roller), lift handle, cable drum, tube shaft, flag bracket and so on. Also we provide the service of garage door installation, hope we can be helpful in your business.
