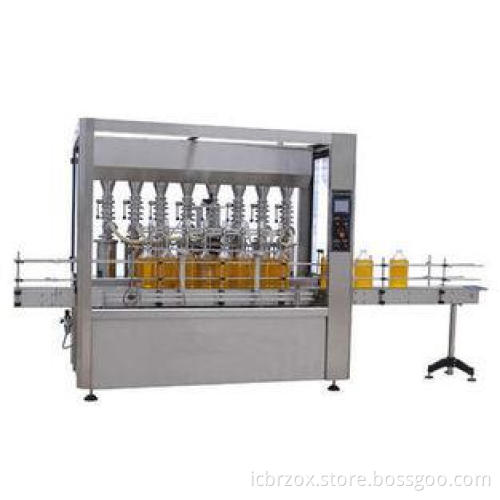

Automatic Oil Bottle Filling Machine In PLC Control Siemens Electronic Parts
Quick Details:
Production Capacity: 10-50bottle/min
Filling Volume: 50-5000ML
Filling Nozzle: 4/8/12
Description:
AY Automatic oil filling machine is applied for fill oil or oil similar like,such as edible orlengine oil. It is able to integrate to other matched machine in bottling line,fully complete and intelligence control advantage.
Applucation:
Pharmaceutical Industry, Food Industry, Chemical Industry and Comestic Inudstry Oil Filling
Specifications:
| Option filling volume: | 50-5000ml |
| Filling head: | 4,8,12 |
| Filling precision: | ≤±1% |
| Request air pressure | ≤0.4-0.6Mpa |
| Air consumption | 15m3/h |
| Power | 220V 50Hz |
| Power output | ≤1.2Kw |
| Machine noise | ≤50dB |
| Net weight | ≤1000kg |
Comptitive Advantage:
● Adopt volumetric piston pump, pneumatic control SS check valve to fill various kinds on liquid from light to medium heavy.
● Pneumatic control piston pump,easy adjust filling volume.
● Top liquid hopper applicalion,with auto level sensor to control stuff supply and stop.
● Auto shut on/off filling nozzle,prevent drop shile filling.
● Convenient to take out component parts to clean and sterilize,adjust to fit to other bottle size with no change parts.
● Frequency inverter speed control,no bottle no fill intelligence.
● Allelectric elements adopt Mitsubishi,Schneider brand.
● Whole machine designed and manufactred accordance to GMP regulation.
