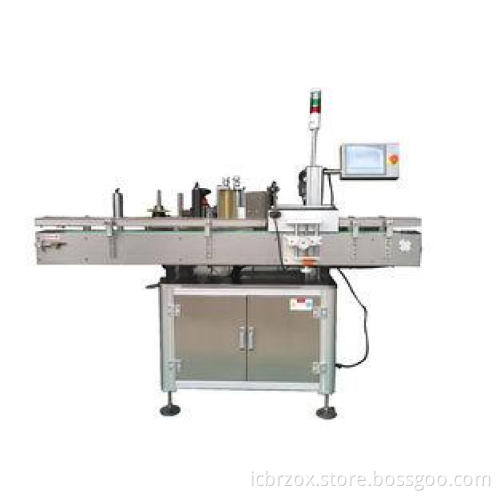

PLC Round Bottle Stainless Steel 304 Automatic Labeling Machine With 10-200 PCS/min
Quick Detail:
Model No.: MT-200
Running speed:: 10-200pcs/min
Weight:200kg
Overall Size: 2000X1300X1500
Material: Stainless steel 304
Certificate: CE Certificate
Description:
1. The machine adopts step motor for driving, high accuracy working. (Servo Motor is also an optional)
2. PLC control with Touch screen for operation. This controlling system are Taiwan Delta Brand.
3. The sensors of the machine are Japan imported brand, Keyence, High speed and accurate working.
4. The machine comes with automatic alarming system when lack of label, breaking label, lack of ribbon.
5. Whole body stainless steel 304 with T6 Aluminum Alloy meets GMP Standard.
The position of height and backwards or forwards are adjustable
Applications:
MT-200 model vertical type round bottle Round Bottle Labeling machine, in order to achieve rationalization of production target and design. The machine comes with automatic labeling process, simple operation, high speed running, accurate labeling position, beautiful labeling. The machine can be used for pharmaceutical, chemical and foodstuff Industry labeling.
Specifications:
| Driver Motor: | Stepping motor |
| Operation: | Right or left |
| Running speed: | 10-200 PCS/min |
| Packaging Range: |
Ф 15 - Ф diameter 100mm Height 25-350mm Label size width 10-150mm length 15-200mm |
| Maximum diameter of label: | Ф 300mm |
| Coil diameter: | Ф 75mm label |
| Weight: | 200kg |
| Power supply: | AC220V 0.5Kw 60HZ |
| Overall Size: | 2000X1300X1500 |
| *Ribbon Coding machine: | HP 260Q |
Competitive Advantage:
1. We have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
5. We have Technical Support in below Foreign Cities:
California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho
