4Port 10/100/1000M Base Gigabit Network Switch high performance Gigabit Switch

Get Latest Price

Payment Type:: T/T, Western Union, paypal

Incoterm:: FOB

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 1 Days

Transportation:: Land

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	shenzhen
Productivity:	1000
Supply Ability:	5000
Payment Type:	T/T,Western Union,paypal
Incoterm:	FOB
Certificate:	CE ROHS
Transportation:	Land

Product Description

Quick Details

4port poe switch 48V
Transmission Rate: 10/100/1000Mbps
Function: LACP, POE, QoS, SNMP, Stackable, VLAN Support
Communication Mode: Full-Duplex & Half-Duplex
Certification: CE,RoHS,FCC
Switch Capacity: 10G
Place of Origin: Guangdong, China (Mainland)
Warranty: 1 year
packing: OEM
Power Pin: 1/2+ 3/6-
switch style: gigabit switch

Packaging & Delivery

PL-PSE3005T-A1 power adapter 48V 2A , each port output 25.4W for HD ip camera FREE SHIPPING only cost us$65.9

PL-PSE3005-A1

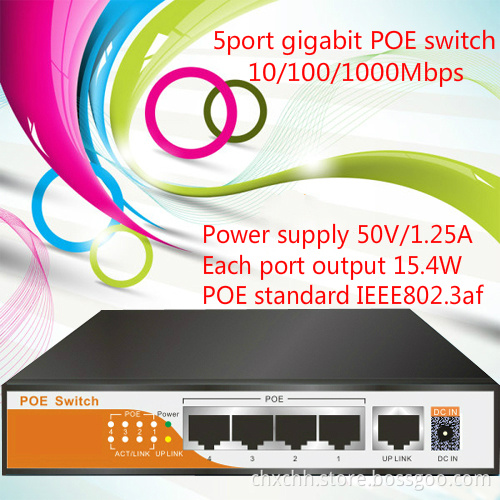

5 port gigabit poe switch,4 port 10/100/1000 poe switch for hikvision's camera

Description
PL-PSE3005-A1 is a dedicated,high speed 5 port gigabit poe switch.Total 5 10/100/1000mbps gigabit ports with 4 poe complying with IEEE802.3af/at.Each poe ports output max 25.5w.Total POE budget is 45w.

Very fast stability,great stability,plug-n-play,easy to install and maintenance.In addition,Very reasonable price.It's best used for HD ip cameras installation.

Features

l Complies with IEEE 802.3 IEEE 802.3u IEEE802.3ab IEEE 802.3af&at standards

l 4 gigabit poe ports,each port output max 30w

l 5 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX

l UTP port support automatic negotiation function, automatic adjustment transmission mode and transmission rate;

l compatible with Ethernet application, Internet system, reduce the cost of network

l Support IEEE 802.3x flow control for full duplex mode and backpressure for half duplex mode on all port

l Non-blocking switching architecture that forward and filter packets at wire-speed for maximum throughput

l Support MAC address auto-learning and auto-aging

l LED indicators for power,poe,link/act

l Steel case

Standards
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-TX Gigabit Ethernet
IEEE 802.3x flow control
IEEE 802.3af&at
protocol
CSMA/CD
Transmission Rate
Ethernet 10Mbps (half duplex),20Mbps (full duplex); 10BASE-T:14,880pps/port
Fast Ethernet 100Mbps (half duplex),200Mbps (full duplex); 100BASE-TX :148800pps/port
Gigabit Ethernet 2000Mbps (full duplex), 1000BASE-T :1488000pps/port
Topology
Star
Network Medium
10Base-T:Cat 3 or above Cat.3 UTP(≤100m)
100Base-TX:Cat 5 UTP(≤100m)
1000Base-T:Cat 6 or above Cat.5 UTP(≤100m)
Number of Ports
5 10/100/1000M RJ45 ports
POE Number of Ports
4 POE Ports
UPLINK
1 Up-link port
Transmits Method
Store-and-Forward
Over Voltage/Current/Short Protection
The output can be shorted permanently without damage
Temperature
Operating Temperature -5~55
Storage Temperature -40~70
Humidity
Operating Humidity 10%~90% non-condensing
Storage humidity 5%~95% non-condensing
Switch capacity
10G
LED Indications

1*power LED(Power: Red) 5*data LEDs(Link/Act: Green)
4*POE LEDs(POE:Yellow)
POE Supply Power
50v 1.25a
Dimension(W x H x D)
162*95*28mm
Case Material
Steel case
