IEC61588 Mandrel Test Device for Insulation Material tester
- Payment Type:
- T/T, Western Union, Express
- Incoterm:
- FOB
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 4 Days
- Transportation:
- Ocean, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 1000set/month |
| Supply Ability: | 1000Set /month |
| Payment Type: | T/T,Western Union,Express |
| Incoterm: | FOB |
| Certificate: | Calibration certificate |
| Transportation: | Ocean,Air |

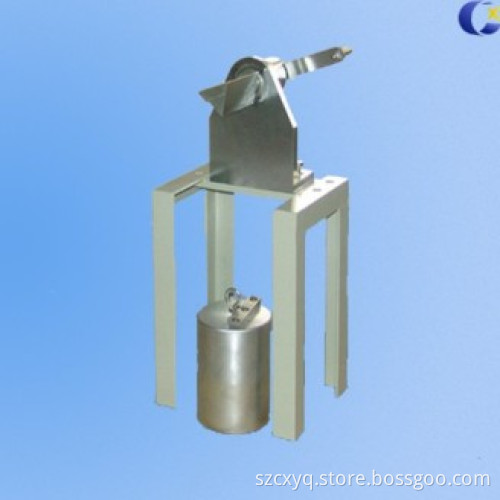

IEC61588 /60065 Mandrel Test Device for Insulation Material Layer abrasion test
IEC60588 Insulation Material Layer abrasion resistant Test Device
This Mandrel Test Device conforms to IEC60588-1 Fig6 and IEC60065 Fig14--16.The test shall be performed by fixing the specimens of thin sheets on a mandrel made of
nickel plated steel or brass with smooth surface finish.
A metal foil shall be placed closely to the surface of the specimen and subjected to a pull force of 1 N. The metal foil shall be so positioned that its borders are 20 mm away from the borders of the specimen, and when the mandrel is in its final position, it covers
the edges upon which the specimen is lying by at least 10 mm.
the specimen is held in place at its free end by an appropriate clamping device and subjected to:
– a pull force of 150 N for a specimen consisting of several non separable layers;
– a pull force of 100 N for a specimen consisting of 2/3 the number of separated layers
– a pull force of 50 N for a specimen consisting of a single layer (serrated or not).
Include weigh: 150N*1 and 1N*1.
