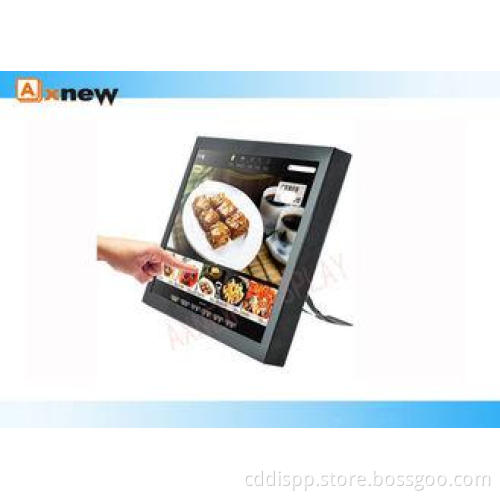

12V Liquid Crystal Industrial LCD Touch Screen Monitor 19 inch Resistive
19 inch industrial LCD touch monitor with VGA DVI input slim and thin design for 19’’ LCD, if needs the touch, please contact us for details. The 19’’ 4:3 format LCD is widely used for Medical industry , Automatic equipments, Advertising , vending embedded system, Kiosks etc. Closed frame with stand is used for desktop as well.
Quick Details:
|
Model: AXD-19OPIP-TEE |
Screen Size:19’’ |
|
Screen format: 4:3 |
Display Resolution(pixel):1280x1024 |
|
Contrast Ratio:1000:1 |
Brightness:350cd/m^2 |
|
Storage temperature : -10℃~70℃ |
Input signal: VGA DVI |
|
Power Input:AC100~240 V/DC 12V |
Product status: Stock |
Features and Advantages
1. New and Industrial A grade perfect panels with stable supply
2. Slim and simple closed frame to mount all the LCD kits in one , which is easily installed
3. industrial control board supports the displays working 24 hours
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. VGAinterfaces ; Resistive touch screen with USB port
6. 19 inch closed frame touch monitor for application control , advertising player ,campus and industrial terminals, desktop
|
Display Specifications |
|
|
Display |
19" Color TFT Closed frame touch Monitor |
|
Model Name |
AXD-19OPIP-TEE |
|
Active Display Area (mm) |
376.3 (H)x301.1(V) |
|
Pixel Pitch (mm) |
0.294(H)x0.294(V) |
|
Resolution (Pixel) |
SXGA (1280X1024) 262,16.2M (6 bit + FRC) |
|
Brightness (CD/m^2) |
350cd/m^2 |
|
Contrast Ratio |
1000:1 |
|
Viewing Angle (CR >=10) |
160/160 |
|
Power consumption |
28.5W typical, normal operation |
|
Touch Screen |
Resistive ;RS232/USB(Optional) |
|
OSD Control |
On the back side |
|
I/O Connectors |
1x12v,1XVGA,DVI-D(Optional) |
|
Power Input |
DC 12V,4A 48W |
|
Mechanical Specifications |
|
|
Construction |
Steel metal frame with black colors |
|
Dimensions |
398.5 x 326.5x 50.0 (mm) |
|
Mounting |
Desktop ;Embedded optional |
|
Power source |
AC 100~240V/ 12V 4A AC/DC adapter |
|
Environment Specifications |
|
|
Operating Temperature |
0~60℃ |
|
Storage Temperature |
-10~70℃ |
|
Rating |
Facilitate installation of the demolition, solid portfolio |
|
Ordering Information |
19” Industrial closed touch Monitor with VGA input and power adapter |
Packaging & Delivery
|
Packing details |
1x 19 inch Industrial Touch Screen Monitor; Packed in 10 pieces/carton with protection foam Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter |
|
Delivery terms |
7- working days for stock products after receiving payments; 15 working days for order production |
