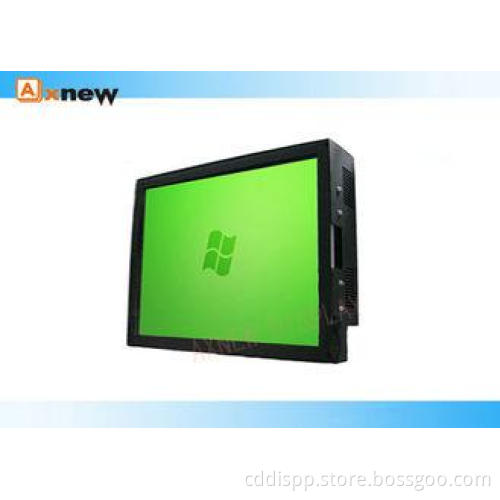

Wall Mounting Industrial LCD Touch Screen Monitor 17" 4:3 IR Panel
17 inch industrial LCD open frame monitor with VGA DVI input slim and thin design for 17’’ LCD. IR Touch with anti-vandal to protect the LCD .used for Automatic equipments, Advertising , vending embedded system, Kiosks application etc.
Quick Details:
|
Model: AXD-17OPN1P2-T4 |
Screen Size:17’’ |
|
Screen format: 4:3 |
Display Resolution(pixel):1280x1024 |
|
Contrast Ratio:1000:1 |
Brightness:300cd/m^2 |
|
Storage temperature : -20℃~70℃ |
Input signal: VGA DVI |
|
Power Input: AC100~240 V/DC 12V |
Product status: Stock |
Features and Advantages
1. New and Industrial A grade perfect panels with stable supply
2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed
3. industrial control board supports the displays working 24 hours
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. VGA DVI interfaces ;IR Touch screen with anti-vandal to protect the LCD
6. 17 inch open frame touch monitor for application control , advertising player ,campus and industrial terminals etc
|
Display Specifications |
|
|
Display |
17" Color TFT ir touch Monitor (anti-vandal) |
|
Model Name |
AXD-17OPN1P2-T4 |
|
Active Display Area (mm) |
337.920(H)x270.336(V) |
|
Pixel Pitch (mm) |
0.264(H)x0.264(V) |
|
Resolution (Pixel) |
XGA (1280X1024) 16.2M /6 bit + FRC |
|
Brightness (CD/m^2) |
300cd/m^2 |
|
Contrast Ratio |
800:1 |
|
Viewing Angle (CR >=10) |
160/140 |
|
Power consumption |
25.8W typical, normal operation |
|
Touch Screen |
anti-vandal ir touch panel |
|
OSD Control |
On the back side |
|
I/O Connectors |
1x12v,1XVGA,DVI-D |
|
Power Input |
DC 12V,4A 48W |
|
Mechanical Specifications |
|
|
Construction |
Steel chassis & black Color |
|
Dimensions |
378.5 x 337.0x 58.0(mm) |
|
Mounting |
Edge fixing holes,Vesa Mounting |
|
Power source |
AC 100~240V/ 12V DC |
|
Environment Specifications |
|
|
Operating Temperature |
0~60℃ |
|
Storage Temperature |
-20~70℃ |
|
Rating |
Facilitate installation of the demolition, solid portfolio |
|
Ordering Information |
17” ir touch open frame Monitor with VGA input and power adapter for indoors application |
Packaging & Delivery
|
Packing details |
1x 17 inch Industrial Touch Screen Monitor; Packed in 10 pieces/carton with protection foam Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter |
|
Delivery terms |
7- working days for stock products after receiving payments; 15 working days for order production |
