800X600 DVI VGA Rack Mount LCD Monitor , 12.1" 16.2M Color
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|

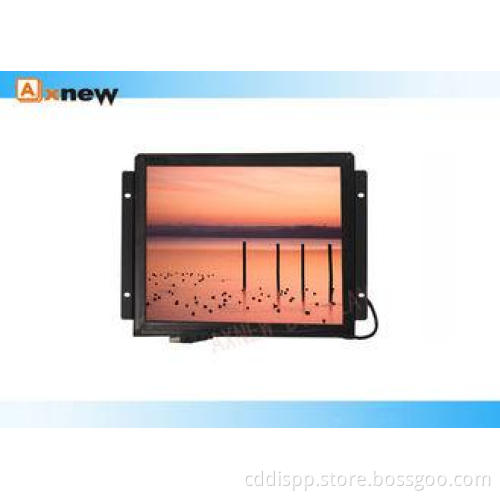

DVI VGA Rack Mount Industrial LCD Touch Screen Monitor 600:1 Screen
12.1 inch IR touch screen open frame lcd monitor with VGA DVI input , infrared touch screen LCD monitor
used to mount into the Automatic equipments, Gas Station ,Advertising , vending embedded system, ATM application etc.
Quick Details:
|
Model: AXD-12OPT2P1 |
Screen Size:12.1’’ |
|
Screen format: 4:3 |
Display Resolution(pixel):800X600 |
|
Contrast Ratio:600:1 |
Brightness:400cd/m^2 |
|
Storage temperature : -30℃~85℃ |
Input signal: VGA DVI |
|
Power Input: AC100~240 V/DC 12V Touch Type: IR Touch screen |
Product status: Stock |
Features and Advantages
1. New and Industrial A grade perfect panels with stable supply
2. industrial control board supports the displays working 24 hours
3. Professional and industrial hardware and parts to guarantee its working normally in rough environment
4. Open frame chassis design to protect the LCD screen
5. VGA DVI interfaces ;USB IR touch with Anti-vandal, dust-proof on the front panel
6. 12.1 inch touch monitor for application control , ATM , Automatic system ,campus and industrial terminals etc
|
Display Specifications |
|
|
Display |
12.1" Color TFT touch Monitor |
|
Model Name |
AXD-12OPT2P1 |
|
Active Display Area (mm) |
246.0(H)x184.5(V) |
|
Pixel Pitch (mm) |
0.3075(H)x0.3075(V) |
|
Resolution (Pixel) |
SVGA (800X600) 16.2M Color |
|
Brightness (CD/m^2) |
400cd/m^2 |
|
Contrast Ratio |
600:1 |
|
Viewing Angle (CR >=10) |
150/120 |
|
Power consumption |
8.3W typical, normal operation |
|
Touch Screen |
IR Touch ;RS232/USB (Optional) |
|
I/O Connectors |
1x12v,1xVGA,1xDVI |
|
Power Input |
DC 12V,4A 48W |
|
Mechanical Specifications |
|
|
Construction |
Open frame housing &black color |
|
Dimensions |
305.3x 215.0x 46.7(mm) |
|
Mounting |
Embedded ,edge locking,75x75 or 100x100 vesa mounting |
|
Power source |
AC 100~240V/ 12V DC |
|
Environment Specifications |
|
|
Operating Temperature |
0~80℃ |
|
Storage Temperature |
-30~80℃ |
|
Rating |
Facilitate installation of the demolition,solid portfolio |
|
Ordering Information |
12.1” open frame touch Monitor with VGA input and power adapter |
Packaging & Delivery
|
Packing details |
1x 12.1 inch Industrial Touch Screen Monitor; Packed in 10 pieces/carton with protection foam Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter |
|
Delivery terms |
7- working days for stock products after receiving payments; 15 working days for order production |
