Flat Panel Aluminum Alloy Led Light

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China Mainland

Product Description

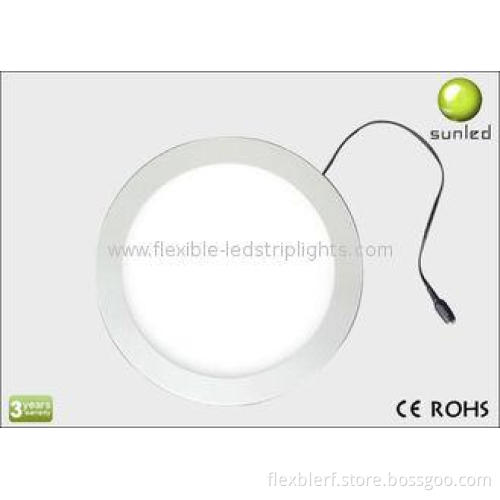

Flat Panel Aluminum Alloy Led Light

Quick Detail:

Energy Saving. Saving 55%-70% electricity cost to traditional Panels.
Advanced super longlife and stable driver.
Professional thermal management.
Instant on, no warm up time required.
No noise, no flickering.

1.Specification List

Number of LEDs (pcs): 90 SMD LEDs
Total power consumption of LEDs (W):10W
Color temperature (K):3200K
Luminous flux (Lm):700~800Lm
Color: warm white
Dimension: ￠180 x12mm
Beam angle (degree):>120degree
Color rendering index (CRI) : >70
Rated voltage (V AC/V DC): AC 50v~270v
Frequency range (Hz): 50~60Hz
Working environment: indoor
Material of body: aluminum alloy frame and PMMA cover
IP rating: IP42
Operating temperature: -20~65 degrees Celsius
Net weight and gross:900±300g
DIM feature(Y/N): N
Life span: 50, 000hours
Warranty (years): 3 years

2. Discription

LED Panel has been design to work with conventional Grid Panel Light with fluorescent tube fixtures.
To replace the short lived fluorescent lamps that are typically used in interior lighting.
The LED Panel can be used to retrofit existing fluorescent tube grid light installations in all types of applications.

3. Highlights & Features

Highlights:
• Epistar Chip Imported super bright SMD LED, high luminous intensity and efficiency.
• Industry's leading luminous efficiency, Top 3 in China.
• Super Longlife designed driver , MTBF estimated at 40, 000 hours, UL & Tuv Listed.
• Extra insulation design, withstand voltage of 3750V
• Super high light transmit shell distribute uniformed light.
• Leading heat management, low termperature increase, largely increase the lifetime
• 3 years warranty available for option and lifetime cost price mantaince and care for sure.
• Manufacturer directly amd massive production volume, guarantee lowest price for same quality.
• Lifetime: 40, 000hours@20℃ (time of luminous maintenance 70% @environment temperature)

Features:

Energy Saving. Saving 55%-70% electricity cost to traditional Panels.
Advanced super longlife and stable driver.
Professional thermal management.
Instant on, no warm up time required.
No noise, no flickering.
No UV or IR radiation in the beam, mercury free.
Anti-shock, anti-moisture.
Aluminum alloy 6063 body and leading light transmitting Optical PMMA cover.
Exquisite small appearance. Easy to install with mounting brackets.
Eco-friendly. No mercury and other harmful materials
No delay on start.
Long life span, longer than 40, 000H

4. Central Illuminance at different installation height

5.Storage Condition

The LEDs better be kept at ≦30℃ & ≦ 60%RH.
Please avoid conditions which may cause the LEDs being corroded or discolored. The corrosion or discoloration might lower solderability or affect optical characteristics.
Please avoid rapid transition in ambient temperature, especially in high humidity environments where condensation can occur.

6. Installation Guide

7.Package
